Description
Overview Not Available

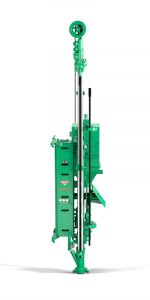

CPA 222E Drilling Attachment
CPAs
CPA 222E Drilling Attachment
- Attachments are easy to install and remove
- Simple to use
- Wide field of application
- Long reach possibilities
- More flexible than a drill rig
- Improve percent of use of the excavator
- Enable the management of complex activities on site (excavation, anchorage, bolting or blasting)
- Reduce reliance on others
- Possibility to expand the company’s activities
| Montabert drifter | HC50 |
| Hole diameter | 36–76 mm |
| Feed length/td> | 6,073 mm |
| Hole length (max) | 7.4 m |
| Type of rod | R32–T38 |
| Rod changer (optional) | Rod adder |
| Feed swing | 4 x +/- 47º |
| Air requirement | 4,000 l/mm |
| Dust collector | Hydraulic |
| CPA weight | 1,610 Kg |
| Carrier weight | 20–27 T |
| Hydraulic requirement | 160–180 l/mm 200 bar |
| Optional CE protection | Virtual barrier |
Related products

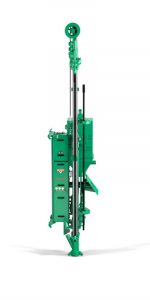

CPA 225E Drilling Attachment
CPAs
CPA 225E Drilling Attachment
- Attachments are easy to install and remove
- Simple to use
- Wide field of application
- Long reach possibilities
- More flexible than a drill rig
- Improve percent of use of the excavator
- Enable the management of complex activities on site (excavation, anchorage, bolting or blasting)
- Reduce reliance on others
- Possibility to expand the company’s activities
Description
Overview Not Available
| Montabert drifter | HC50 |
| Hole diameter | 36–76 mm |
| Feed length/td> | 6,073 mm |
| Hole length (max) | 7.4 m |
| Type of rod | R32–T38 |
| Rod changer (optional) | Rod adder |
| Feed swing | 4 x +/- 47º |
| Air requirement | 4,000 l/mm |
| Dust collector | Hydraulic |
| CPA weight | 1,610 Kg |
| Carrier weight | 20–27 T |
| Hydraulic requirement | 160–180 l/mm 200 bar |
| Optional CE protection | No |
Related products

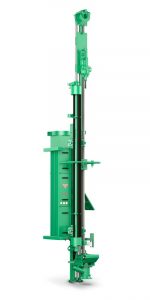

CPA 250 Drilling Attachment
CPAs
CPA 250 Drilling Attachment
- Attachments are easy to install and remove
- Simple to use
- Wide field of application
- Long reach possibilities
- More flexible than a drill rig
- Improve percent of use of the excavator
- Enable the management of complex activities on site (excavation, anchorage, bolting or blasting)
- Reduce reliance on others
- Possibility to expand the company’s activities
Description
Overview Not Available
| Montabert drifter | HC50 |
| Hole diameter | 64–76 mm |
| Feed length/td> | 6,896 mm |
| Hole length (max) | 21 m |
| Type of rod | T38 |
| Rod changer (optional) | 5 rod |
| Feed swing | +/- 45º |
| Air requirement | 6,000 l/mm |
| Dust collector | Hydraulic |
| CPA weight | 2,550 Kg |
| Carrier weight | 25–35 T |
| Hydraulic requirement | 180–190 l/mm 200 bar |
| Optional CE protection | Virtual barrier |
Related products

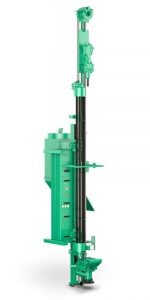

CPA 295 Drilling Attachment
CPAs
CPA 295 Drilling Attachment
- Attachments are easy to install and remove
- Simple to use
- Wide field of application
- Long reach possibilities
- More flexible than a drill rig
- Improve percent of use of the excavator
- Enable the management of complex activities on site (excavation, anchorage, bolting or blasting)
- Reduce reliance on others
- Possibility to expand the company’s activities
Description
Overview Not Available
| Montabert drifter | HC95 |
| Hole diameter | 76–105 mm |
| Feed length | 6,895 mm |
| Hole length (max) | 21 m |
| Type of rod | T45–T51 |
| Rod changer (optional) | 5 rod |
| Feed swing | +/- 45º |
| Air requirement | 8,500 l/mm |
| Dust collector | Hydraulic |
| CPA weight | 2,740 Kg |
| Carrier weight | 25–35 T |
| Hydraulic requirement | 185–195 l/mm 220 bar |
| Optional CE protection | Virtual barrier |
Related products
CPA X-Tend Drilling Attachment
CPAs
CPA X-Tend Drilling Attachment
- Attachments are easy to install and remove
- Simple to use
- Wide field of application
- Long reach possibilities
- More flexible than a drill rig
- Improve percent of use of the excavator
- Enable the management of complex activities on site (excavation, anchorage, bolting or blasting)
- Reduce reliance on others
- Possibility to expand the company’s activities
Description
Overview Not Available
| Montabert drifter | HC150 RP | HC112 RP | HC160 RP |
| Hole diameter | 76–115 mm | 76–127 mm | 89–140 mm |
| Feed length | 7,214–9,975 mm | ||
| Hole length (max) | 28 m | ||
| Type of rod | T45–T51–T60 | ||
| Rod changer (optional) | Rod changer for 5 or 7 rods | ||
| Feed swing | +/- 27º | ||
| Air requirement | 8,500–12,000 l/mm | ||
| Dust collector | Hydraulic | ||
| CPA weight | 3,920 | 2,810–3,114 | 3,150–4,300 |
| Carrier weight | 35–45 T | ||
| Hydraulic requirement | 195 l/mm 190 bar |
210–220 l/mm 220 bar |
|
| Optional CE protection | Metallic cage |
Related products

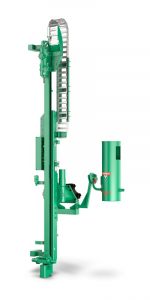

Micro CPA 360 Drilling Attachment
CPAs
Micro CPA 360 Drilling Attachment
- Attachments are easy to install and remove
- Simple to use
- Wide field of application
- Long reach possibilities
- More flexible than a drill rig
- Improve percent of use of the excavator
- Enable the management of complex activities on site (excavation, anchorage, bolting or blasting)
- Reduce reliance on others
- Possibility to expand the company’s activities
- Can be used for roof drilling (360°)
Description
Overview Not Available
| Montabert drifter | HC20 |
| Hole diameter | 26–51 mm |
| Feed length | 4,746 mm |
| Hole length (max) | 6–9 m |
| Type of rod | Hex 22/25–R32 |
| Rod changer (optional) | No |
| Feed swing | +/- 180º |
| Air requirement | 2,000–3,500 l/mm |
| Dust collector | Pneumatic |
| CPA weight | 780 |
| Carrier weight | 10–14 T |
| Hydraulic requirement | 60–95 l/mm 165 bar |
| Optional CE protection | No |
Related products

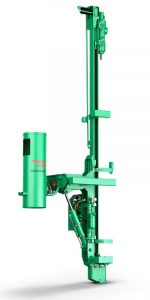

Micro CPA Drilling Attachment
CPAs
Micro CPA Drilling Attachment
- Attachments are easy to install and remove
- Simple to use
- Wide field of application
- Long reach possibilities
- More flexible than a drill rig
- Improve percent of use of the excavator
- Enable the management of complex activities on site (excavation, anchorage, bolting or blasting)
- Reduce reliance on others
- Possibility to expand the company’s activities
Description
Overview Not Available
| Montabert drifter | HC20 |
| Hole diameter | 26–51 mm |
| Feed length | 4,346 mm |
| Hole length (max) | 6–9 m |
| Type of rod | Hex 22/25–R32 |
| Rod changer (optional) | No |
| Feed swing | +/- 45º |
| Air requirement | 2,000–3,500 l/mm |
| Dust collector | Pneumatic |
| CPA weight | 540–690 Kg |
| Carrier weight | 7–10 T |
| Hydraulic requirement | 60–95 l/mm 165 bar |
| Optional CE protection | Metallic cage |
