HC109 Hydraulic Drifter

Awaiting product image

HC109 Hydraulic Drifter

Drifters

HC109 Hydraulic Drifter

  • Piston design can be adapted to ground typology and/or hydraulic oil supply
  • Choice from a wide selection of front head material and shapes
  • Wide rotation torque and rpm setup range
  • Mechanical or hydraulic reverse percussion
  • Wide range of applications: from long holes in quarries to underground face drilling and from soft to hard rock drilling
  • Stainless steel front head available for corrosive environments
  • Strong reputation for high reliability and long lifespan
  • 35 years of continuous research, development and improvements

Contact Us

    Brochure

    Category: Drifters
    • Overview
    • Specifications

    Description

    • Ready for surface and underground drilling
    • Suitable for both factory new and existing machines
    Weight and dimensions
    Weight 170 kg
    Overall length without shank 1,072–1,270 mm
    Overall length with shank 1,274–1,420 mm
    Overall width 320 mm
    Height 200 mm
    Height above shank axis 78 mm

    Impact rating
    Maximum output 17–19 kW
    Percussion flow range (max) 120–135 l/min
    Percussion pressure range (max) 135–155 bar
    Maximum impact frequency 2,200–3,500 bpm
    Maximum impact energy 300–350 J

    Rotation specs
    31cc 43cc 55cc 67cc
    Maximum rotation speed (RPM) 225 220 175 145
    Oil flow (l/min) 45 60 60 60
    Maximum pressure (bar) 140 140 140 140
    Maximum torque (Nm) 430 580 730 880

    Flushing flow and pressure
    Water flushing 100 l/min
    Front end lubricating air consumption at 3 bar 300 l/min

    Related products

    • Placeholder

      HC25 Hydraulic Drifter

      Read more
    • Placeholder

      HC95 LM Hydraulic Drifter

      Read more
    • Placeholder

      HC150 Hydraulic Drifter

      Read more
    • Placeholder

      HC170 Hydraulic Drifter

      Read more
    Awaiting product image

    HC110 Hydraulic Drifter

    Drifters

    HC110 Hydraulic Drifter

    • Easy maintenance with long intervals and maintenance kits available
    • Simple fixing plate and low installation cost
    • High input/output efficiency ratio, for reduced and optimized energy consumption
    • Inline rotation patented system with no gear box and high torque
    • No tie rods; single body drifter prevents seizing and breakage issues
    • Short and robust body for all small diameter drilling applications
    • Uses integral steel or standard rods
    • Suitable for air or water flushing

    Contact Us

      Brochure

      Category: Drifters
      • Overview
      • Specifications

      Description

      • The most powerful Montabert drifter for underground drilling
      • High efficiency ratio
      • Single body drifter without tie rods
      Weight and dimensions
      Weight 215 kg
      Overall length without shank 1,093 mm
      Overall length with shank 1,210 mm
      Overall width 333 mm
      Height 200.5 mm
      Height above shank axis 107.5 mm

      Impact rating
      Maximum output 24–32 kW
      Percussion flow range (max) 150–170 l/min
      Percussion pressure range (max) 165–190 bar
      Maximum impact frequency 3,800–4,300 bpm
      Maximum impact energy 250–380 J

      Rotation specs
      80 cc 100 cc 160 cc
      Maximum rotation speed (RPM) 291 269 175
      Oil flow (l/min) 65 75 78
      Maximum pressure (bar) 210 210 210
      Maximum torque (Nm) 670 840 1340

      Flushing flow and pressure
      Water flushing 130 l/min
      Front end lubricating air consumption at 3 bar 250–300 l/min

      Related products

      • Placeholder

        HC112 Hydraulic Drifter

        Read more
      • Placeholder

        HC200 Hydraulic Drifter

        Read more
      • Placeholder

        HC20 Hydraulic Drifter

        Read more
      • Placeholder

        HC28 Hydraulic Drifter

        Read more
      Awaiting product image

      HC112 Hydraulic Drifter

      Drifters

      HC112 Hydraulic Drifter

      • Compact and agile design allows easy assembly on feed
      • No tie rods; single body drifter prevents seizing and breakage issues
      • Hydraulic reverse percussion improves rod and bit lifespan
      • Easy maintenance with long intervals and maintenance kits available
      • High torque rotation allowing up to GT60 diameter
      • Long hole drilling for both surface and underground drilling
      • Upgraded energy per blow for increased penetration rate

      Contact Us

        Brochure

        Category: Drifters
        • Overview
        • Specifications

        Description

        • Optimized for long hole drilling
        • High efficiency ratio
        • Single body drifter without tie rods
        Weight and dimensions
        Weight 248 kg
        Overall length without shank 1,272–1,316 mm
        Overall length with shank 1,422–1,466 mm
        Overall width 332 mm
        Height 200.5 mm
        Height above shank axis 107.5 mm

        Impact rating
        Maximum output 26–30 kW
        Percussion flow range (max) 172 l/min
        Percussion pressure range (max) 190 bar
        Maximum impact frequency 2,800 bpm
        Maximum impact energy 560 J

        Rotation specs
        160 cc 200cc
        Maximum rotation speed (RPM) 169 135
        Oil flow (l/min) 75 75
        Maximum pressure (bar) 210 210
        Maximum torque (Nm) 1340 1680

        Flushing flow and pressure
        Water flushing 40 l/min
        Front end lubricating air consumption at 3 bar 200 l/min

        Related products

        • Placeholder

          HC110 Hydraulic Drifter

          Read more
        • Placeholder

          HC170 Hydraulic Drifter

          Read more
        • Placeholder

          HC50 Hydraulic Drifter

          Read more
        • Placeholder

          HC25 Hydraulic Drifter

          Read more
        Awaiting product image

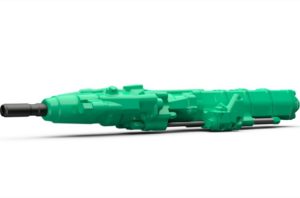

        HC150 Hydraulic Drifter

        Drifters

        HC150 Hydraulic Drifter

        • Compact and agile design allows easy assembly on feed
        • Universal connections to minimize hydraulic and mechanical adaptations
        • No tie rods; single body drifter prevents seizing and breakage issues
        • Hydraulic reverse percussion improves rod and bit lifespan
        • Easy maintenance with long intervals and maintenance kits available
        • High torque rotation allowing up to GT60 diameter
        • Long hole drilling for both surface and underground drilling
        • Upgraded energy per blow for increased penetration rate

        Contact Us

          Brochure

          Category: Drifters
          • Overview
          • Specifications

          Description

          • Innovative design
          • Versatile and flexible
          • Light and powerful

          No Specification available.

          Related products

          • Placeholder

            HC20 Hydraulic Drifter

            Read more
          • Placeholder

            HC112 Hydraulic Drifter

            Read more
          • Placeholder

            HC109 Hydraulic Drifter

            Read more
          • Placeholder

            HC28 Hydraulic Drifter

            Read more
          Awaiting product image

          HC170 Hydraulic Drifter

          Drifters

          HC170 Hydraulic Drifter

          • Up to ST68 diameter for both surface and underground drilling
          • High energy per blow for maximum penetration rate
          • Robust body designed for extreme applications
          • Long maintenance intervals and extended wear parts lifespan
          • Heavy-duty front guide designed for large diameters rods
          • Large diameter holes with very low energy consumption
          • Cost-saving drifter: operational costs and cost per cubic meter

          Contact Us

            Brochure

            Category: Drifters
            • Overview
            • Specifications

            Description

            • Heavy-duty drifter
            • Suitable for large diameter holes
            • Very high rotation torque
            Weight and dimensions
            Weight 326.5 kg
            Overall length without shank 1,269 mm
            Overall length with shank 1,525 mm
            Overall width 410 mm
            Height 326 mm
            Height above shank axis 102 mm

            Impact rating
            Maximum output 22–26 kW
            Percussion flow range (max) 160 l/min
            Percussion pressure range (max) 180 bar
            Maximum impact frequency 2,460 bpm
            Maximum impact energy 510 J

            Rotation specs
            200 cc 315 cc
            Maximum rotation speed (RPM) 130 130
            Oil flow (l/min) 65 80
            Maximum pressure (bar) 220 220
            Maximum torque (Nm) 1612 2031

            Flushing flow and pressure
            Water flushing N/A
            Front end lubricating air consumption at 3 bar 300 l/min

            Related products

            • Placeholder

              HC150 Hydraulic Drifter

              Read more
            • Placeholder

              HC110 Hydraulic Drifter

              Read more
            • Placeholder

              HC200 Hydraulic Drifter

              Read more
            • Placeholder

              HC109 Hydraulic Drifter

              Read more
            Awaiting product image

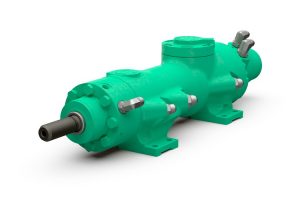

            HC20 Hydraulic Drifter

            Hard rock, montabert drifter, HC25 CGI, KO, display photo, 2015

            Drifters

            HC20 Hydraulic Drifter

            • Easy maintenance with long intervals and maintenance kits available
            • Simple fixing plate and low installation cost
            • High input/output efficiency ratio, for reduced and optimized energy consumption
            • Inline rotation patented system with no gear box and high torque
            • No tie rods; single body drifter prevents seizing and breakage issues
            • Short and robust body for all small diameter drilling applications
            • Uses integral steel or standard rods
            • Suitable for air or water flushing

            Contact Us

              Brochure

              Category: Drifters
              • Overview
              • Specifications

              Description

              • Innovative design
              • Versatile and flexible
              • A user friendly tool to equip your light carriers
              Weight and dimensions
              Weight 69 kg
              Overall length without shank 552 - 700 mm
              Overall length with shank 752 - 793.7 mm
              Overall width 200 mm
              Height 191.5 mm
              Height above shank axis 83.5 mm

              Impact rating
              Maximum output 4.5 kW
              Percussion flow range (max) 45 l/min
              Percussion pressure range (max) 140 bar
              Maximum impact frequency 3,000 bpm
              Maximum impact energy 75 J

              Rotation specs
              67cc 100cc 160cc
              Maximum rotation speed (RPM) 422 300 300
              Oil flow (l/min) 30 30 48
              Maximum pressure (bar) 140 175 175
              Maximum torque (Nm) 143 251 401

              Flushing flow and pressure
              Water flushing 40 l/min
              Front end lubricating air consumption at 3 bar 200 l/min

              Related products

              • Placeholder

                HC200 Hydraulic Drifter

                Read more
              • Placeholder

                HC28 Hydraulic Drifter

                Read more
              • Placeholder

                HC25 Hydraulic Drifter

                Read more
              • Placeholder

                HC170 Hydraulic Drifter

                Read more
              Awaiting product image

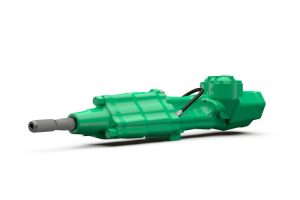

              HC200 Hydraulic Drifter

              drifter, montabert, hard rock, CGI, KO, display image, 2016, HC28

              Drifters

              HC200 Hydraulic Drifter

              • Up to six inch bits for both surface and underground drilling
              • Highest energy per blow in the Montabert drifter series
              • Robust body designed for extreme applications
              • Long maintenance intervals and extended wear parts lifespan
              • Heavy-duty front guide designed for large diameters rods
              • Large diameter holes with very low energy consumption
              • Cost-saving drifter: operational costs and cost per cubic meter

              Contact Us

                Brochure

                Category: Drifters
                • Overview
                • Specifications

                Description

                • Super heavy-duty drifter
                • Highest rotation torque in its class
                Weight and dimensions
                Weight 418 kg
                Overall length without shank 1,408 mm
                Overall length with shank 1,646 mm
                Overall width 410 mm
                Height 331 mm
                Height above shank axis 102 mm

                Impact rating
                Maximum output 25–30 kW
                Percussion flow range (max) 180 l/min
                Percussion pressure range (max) 195 bar
                Maximum impact frequency 2,340 bpm
                Maximum impact energy 640 J

                Rotation specs (200 cc)
                Maximum rotation speed (RPM) 125
                Oil flow (l/min) 80
                Maximum pressure (bar) 200
                Maximum torque (Nm) 1850

                Flushing flow and pressure
                Water flushing N/A
                Front end lubricating air consumption at 3 bar 300 l/min

                Related products

                • Placeholder

                  HC150 Hydraulic Drifter

                  Read more
                • Placeholder

                  HC109 Hydraulic Drifter

                  Read more
                • Placeholder

                  HC95 LM Hydraulic Drifter

                  Read more
                • Placeholder

                  HC25 Hydraulic Drifter

                  Read more
                Awaiting product image

                HC25 Hydraulic Drifter

                Drifters

                HC25 Hydraulic Drifter

                • Easy maintenance with long intervals and maintenance kits available
                • Simple fixing plate and low installation cost
                • High input/output efficiency ratio, for reduced and optimized energy consumption
                • Inline rotation patented system with no gear box and high torque
                • No tie rods; single body drifter prevents seizing and breakage issues
                • Reinforced front bushing for better life span
                • Uses integral steel or standard rods
                • Suitable for air or water flushing

                Contact Us

                  Brochure

                  Category: Drifters
                  • Overview
                  • Specifications

                  Description

                  • Innovative design
                  • Versatile and flexible
                  • Light and powerful
                  Weight and dimensions
                  Weight 72 kg
                  Overall length without shank 694–702 mm
                  Overall length with shank 779–839 mm
                  Overall width 200 mm
                  Height 191.5 mm
                  Height above shank axis 83.5 mm

                  Impact rating
                  Maximum output 6–8 kW
                  Percussion flow range (max) 65 l/min
                  Percussion pressure range (max) 150 bar
                  Maximum impact frequency 3,900 bpm
                  Maximum impact energy 117 J

                  Rotation specs
                  100cc 125cc 160cc
                  Maximum rotation speed (RPM) 300 300 300
                  Oil flow (l/min) 30 37.5 48
                  Maximum pressure (bar) 175 175 175
                  Maximum torque (Nm) 251 313 401

                  Flushing flow and pressure
                  Water flushing 20–50 l/min
                  Front end lubricating air consumption at 3 bar 300 l/min

                  Related products

                  • Placeholder

                    HC109 Hydraulic Drifter

                    Read more
                  • Placeholder

                    HC112 Hydraulic Drifter

                    Read more
                  • Placeholder

                    HC20 Hydraulic Drifter

                    Read more
                  • Placeholder

                    HC50 Hydraulic Drifter

                    Read more
                  Awaiting product image

                  HC28 Hydraulic Drifter

                  drifter, montabert, hard rock, CGI, KO, display image, 2016, HC28

                  Drifters

                  HC28 Hydraulic Drifter

                  • Easy maintenance with long intervals and maintenance kits available
                  • Simple fixing plate and low installation cost
                  • High input/output efficiency ratio, for reduced and optimized energy consumption
                  • Inline rotation patented system with no gear box and high torque
                  • No tie rods; single body drifter prevents seizing and breakage issues
                  • Reinforced front bushing for better life span
                  • Uses integral steel or standard rods
                  • Suitable for air or water flushing

                  Contact Us

                    Brochure

                    Video

                    Category: Drifters
                    • Overview
                    • Specifications

                    Description

                    • Innovative design
                    • Versatile and flexible
                    • Light and powerful
                    Weight and dimensions
                    Weight 103 kg
                    Overall length without shank 785 mm
                    Overall length with shank 913 mm
                    Overall width 226 mm
                    Height 200 mm
                    Height above shank axis 86 mm

                    Impact rating
                    Maximum output 6–9.8 kW
                    Percussion flow range (max) 68 l/min.
                    Percussion pressure range (max) 160 bar
                    Maximum impact frequency 3,200 bpm
                    Maximum impact energy 160 J

                    Rotation specs
                    Maximum rotation speed (RPM) 300
                    Oil flow (l/min) 48
                    Maximum pressure (bar) 210
                    Maximum torque (Nm) 480

                    Flushing flow and pressure
                    Water flushing 30–60 l/min
                    Front end lubricating air consumption at 3 bar 300 l/min

                    Related products

                    • Placeholder

                      HC95 LM Hydraulic Drifter

                      Read more
                    • Placeholder

                      HC150 Hydraulic Drifter

                      Read more
                    • Placeholder

                      HC109 Hydraulic Drifter

                      Read more
                    • Placeholder

                      HC112 Hydraulic Drifter

                      Read more
                    Awaiting product image

                    HC50 Hydraulic Drifter

                    Drifters

                    HC50 Hydraulic Drifter

                    • Multiple configurations available for all applications
                    • Compatible with all standard diameters for bolting and face drilling
                    • Incorporates similar technologies as larger size drifters
                    • Proven reliability and longer lifespan
                    • 35 years of continuous research, development and improvements
                    • Piston design can be adapted to ground typology and/or hydraulic oil supply
                    • Choose from a wide selection of front head material and shapes
                    • Wide rotation torque and rpm setup range

                    Contact Us

                      Brochure

                      Category: Drifters
                      • Overview
                      • Specifications

                      Description

                      • Strong reputation in drilling industry with proven technology
                      • Easy to adapt on any machine
                      • Ready for any job
                      Weight and dimensions
                      Weight 103 kg
                      Overall length without shank 826 mm
                      Overall length with shank 996–1,007 mm
                      Overall width 314 mm
                      Height 164.5 mm
                      Height above shank axis 75.5 mm

                      Impact rating
                      Maximum output 12–14 kW
                      Percussion flow range (max) 90–105 l/min
                      Percussion pressure range (max) 130–150 bar
                      Maximum impact frequency 3,300–4,200 bpm
                      Maximum impact energy 180–220 J

                      Rotation specs
                      31cc 43cc 55cc 67cc
                      Maximum rotation speed (RPM) 235 209 193 237
                      Oil flow (l/min) 25 30 35 52
                      Maximum pressure (bar) 140 140 140 140
                      Maximum torque (Nm) 230 305 385 466

                      Flushing flow and pressure
                      Water flushing 30–60 l/min
                      Front end lubricating air consumption at 3 bar 300 l/min

                      Related products

                      • Placeholder

                        HC95 LM Hydraulic Drifter

                        Read more
                      • Placeholder

                        HC200 Hydraulic Drifter

                        Read more
                      • Placeholder

                        HC109 Hydraulic Drifter

                        Read more
                      • Placeholder

                        HC25 Hydraulic Drifter

                        Read more
                      Awaiting product image

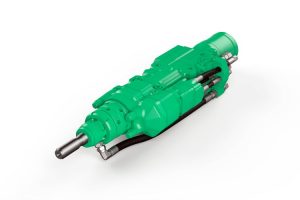

                      HC95 LM Hydraulic Drifter

                      Drifters

                      HC95 LM Hydraulic Drifter

                      • High input/output efficiency ratio, for reduced and optimized energy consumption
                      • Latest generation of patented proactive hydraulic dampener, improving shanks and bits life span
                      • Standard configuration with stainless steel front end
                      • High-capacity HP nitrogen accumulator granting high and constant impact energy
                      • Energy recovery system boosting impact rate for better penetration results
                      • Strong and economical rotation system allowing large reaming holes
                      • Standard configuration with hydraulic reverse percussion, allowing long hole drilling applications
                      • The shortest drifter in its category; longer holes for the same feed size
                      • No tie rods; single body drifter prevents seizing and breakage issues
                      • No need to re-inflate accumulators between overhauls
                      • New patented anti-cavitation sealing system, increasing intervals between overhauls
                      • New drifter concept with less parts for handy maintenance

                      Contact Us

                        Brochure

                        Category: Drifters
                        • Overview
                        • Specifications

                        Description

                        • The latest generation of Montabert drifters
                        • Designed for optimal drill life span
                        • The perfect tool to equip your drill rigs
                        Weight and dimensions
                        Weight 185 kg
                        Overall length without shank 1,033 mm
                        Overall length with shank 1,162 mm
                        Overall width 301 mm
                        Height above shank axis 86mm

                        Impact rating
                        Maximum output 21 kW
                        Percussion flow range (max) 100–120 l/min
                        Percussion pressure range (max) 170–200 bar
                        Maximum impact frequency 3,720 bpm
                        Maximum impact energy 340 J

                        Rotation specs
                        100cc 125cc 160cc
                        Maximum rotation speed (RPM) 303 303 296
                        Oil flow (l/min) 48 60 75
                        Maximum pressure (bar) 210 210 210
                        Maximum torque (Nm) 480 600 750

                        Flushing flow and pressure
                        Water flushing 60–120 l/min
                        Front end lubricating air consumption at 3 bar 300 l/min

                        Related products

                        • Placeholder

                          HC50 Hydraulic Drifter

                          Read more
                        • Placeholder

                          HC20 Hydraulic Drifter

                          Read more
                        • Placeholder

                          HC28 Hydraulic Drifter

                          Read more
                        • Placeholder

                          HC112 Hydraulic Drifter

                          Read more

                        Our Products

                        Resources

                        • Profile
                        • Gallery/ Media
                        • Service & Repairs
                        • Contact Us
                        • Privacy Policy

                        Managed By

                        © Monty Products 2023

                        © Monty Products Powered By Impressive Business Pro WordPress Theme
