Attachment Milling Machines
Cutter Wheels
DMW Series. Double Motor Wheels in twelve configurations across four power classes (DMW 90, 130, 220, 240, 400) and three blade depths (400, 600, 800-1000 mm). Carriers from 14 to 120 tonnes, torque to 142,730 Nm.
- Configurations
- 12
- Carrier class
- 14 - 120 t
- Cutting force up to
- 105.7 kN
- Torque up to
- 142,730 Nm
DMW Series. Double Motor Wheels
Dual hydraulic motors, twelve configurations, match cutting force, blade depth and carrier exactly.
Kemroc's DMW (Double Motor Wheel) cutter wheels combine two high-torque hydraulic motors for vibration-free cutting through rock and reinforced concrete up to 140 MPa. Four power classes (DMW 90, 130, 220, 240, 400) each available in multiple blade depths (400, 600, 800 or 1,000 mm), twelve configurations to match cutting force, blade depth and carrier exactly. Rated for underwater operation to 30 m. Distributed in Australia by Monty Products.
Dual High-Torque Motors
Two hydraulic motors deliver long-lasting, vibration-free cutting action, sustained productivity in materials up to 140 MPa.
Underwater & Dust-Suppressed
Optional water nozzles for dust suppression on dry sites; rated for underwater operation to 30 m without modification.
Cut-and-Break Method
Vibration-free cutting that protects the carrier and surrounding structures, ideal for noise- and vibration-restricted urban sites.
Range Spectrum
Service weight (kg)
Where each model sits across the range. Lighter on the left, heavier on the right.
Where It Works
Common applications across Australian construction, demolition and civil sites.
Trenching
Wide trenches with vertical walls, clean cutting in rock and reinforced concrete where chain trenchers can't reach.
Demolition
Selective demolition of reinforced concrete structures, bridges, foundations and heavy civil works.
Soft-to-medium mining
Cut-and-break extraction of softer minerals, gypsum, limestone, salt, without blasting.
Underwater operation
Rated to 30 m underwater, harbour, dock, weir and offshore demolition work.
Reinforced concrete cutting
Through-cut reinforced concrete with cleaner edges than breakers, controlled removal where surrounding structures must survive.
Precision profiling
Dimensional cutting to specification, vertical, horizontal and inclined surfaces with consistent geometry.
The Range in Action
A featured shot plus supporting views, taken on Australian sites.

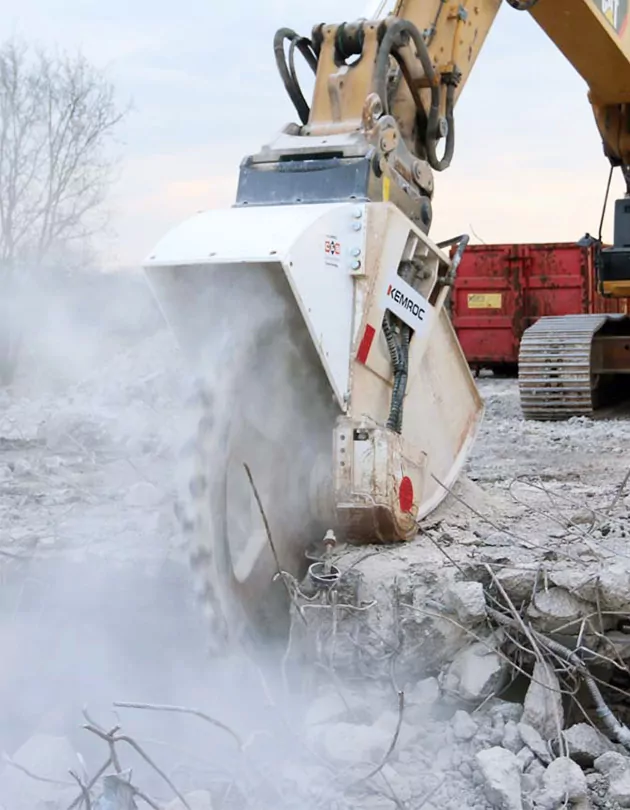

DMW 220Bridge demolition with cut-and-break method

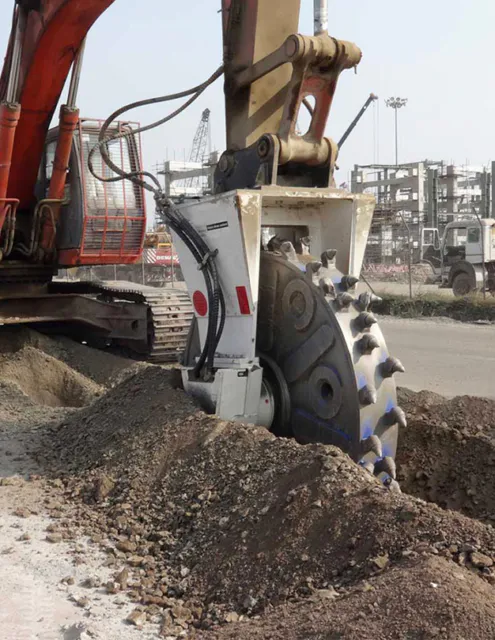

DMW 220Cable trenching in reinforced surfaces

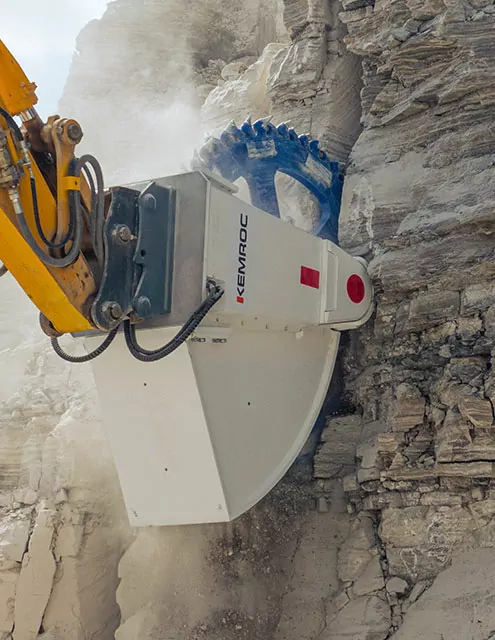

DMW 220Cut-and-break rock extraction

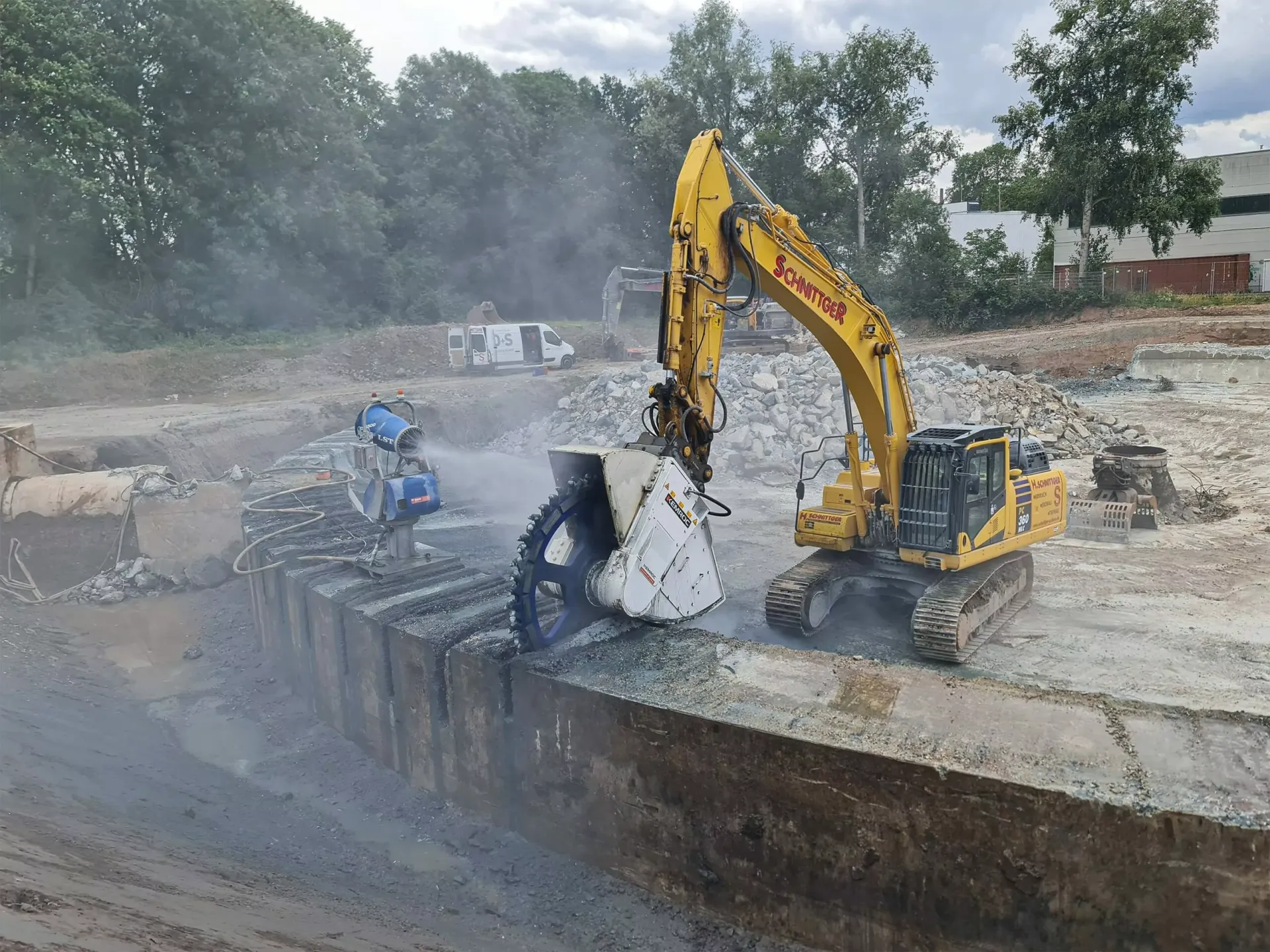

DMW SeriesDual-motor design for the toughest cuts
Technical Specifications
Scroll horizontally on smaller screens. The measure column stays in view.
| Measure | DMW 90 W400 | DMW 130 W400 | DMW 220 W600 | DMW 220 W1000 | DMW 240 W1000 | DMW 400 W1000 |
|---|---|---|---|---|---|---|
| Carrier weight (t) | 14-25 | 20-40 | 40-60 | 45-60 | 45-60 | 70-120 |
| Service weight (kg) | 1,805 | 1,905 | 4,650 | 6,100 | 6,100 | 6,100 |
| Oil flow (L/min) | 170 | 320 | 550 | 500 | 500 | 600-900 |
| Torque (Nm) | 11,300 | 24,500 | 59,500 | 59,500 | 65,300 | 142,730 |
| Cutting force (kN) | 19 | 41 | 74 | 46 | 51 | 105.7 |
| Cutting depth (mm) | 400 | 400 | 550 | 1,000 | 1,000 | 1,000 |
| Rotation speed (rpm) | 90 | 80 | 55 | 50 | 45 | 25 |
Selection from the full DMW range, six representative configurations across four power classes. Additional blade depths (600 mm, 800 mm) available for most power classes; full range includes 12 configurations. Contact Monty Products for the complete spec sheet.
