Demolition & Recycling Attachments
Orange Peel Grab
RPG Series, five models from RPG 4-450 to RPG 6-800 for 16 to 50 tonne carriers. Shell volumes 450 to 800 L, lift capacity 8 to 10 t. HARDOX® shells with manganese-steel tips for the hardest scrap and bulk handling.
- Models in range
- 5
- Carrier class
- 16 - 50 t
- Shell volume up to
- 800 L
- Lift capacity up to
- 10 t
RPG Series, orange peel grab
Move a mountain of scrap. 800 L volumes, 10 t lift, fast cycle times.
The Rotar RPG Series is the workhorse of scrap yards and bulk handling sites. Five models, three 4-segment and two 6-segment, cover excavators from 16 to 50 tonnes, with shell volumes from 450 L (RPG 4-450) up to 800 L (RPG 6-800). Lift capacities reach 10 t. HARDOX® shells with manganese-steel tips, sealed pivot points with wide bushes, end-cushioning cylinders and a pressure-relief valve protect the system through impact loads. Distributed in Australia by Monty Products.
HARDOX® + Manganese Tips
Wear-resistant shells in HARDOX® steel with manganese-steel tips. Long bearing pivot points with wide bushes, sealed against grease and dust for optimum lubrication and long shell life.
Strong Rotating Upper Head
High-torque hydraulic motor in the upper head with heavy-duty slewing ring. Handles heavy loading from any position with full lift force regardless of orientation.
End-Cushioned Cylinders
Cylinders fitted with end-cushioning that absorb the heavy shock loads orange-peel grabs see daily, plus a pressure-relief valve protecting the system from peak pressures.
Range Spectrum
Service weight (kg)
Where each model sits across the range. Lighter on the left, heavier on the right.
Where It Works
Common applications across Australian construction, demolition and civil sites.
Scrap metal handling
Lift and load scrap steel, ferrous and non-ferrous metals across yards and recyclers.
Bulk material loading
Aggregate, demolition rubble and loose bulk goods loaded onto trucks or stockpiles.
Demolition cleanup
Site cleanup of mixed demolition waste, fast loading without stopping for sorting.
Aggregate handling
Stockpile feeding for crushers, screens and weighbridges across quarries and recycling sites.
Recycling yards
Daily handling of mixed scrap streams across metal and waste recycling operations.
Waste sorting
Pick-and-place sorting of mixed waste piles into clean recycling streams.
The Range in Action
A featured shot plus supporting views, taken on Australian sites.

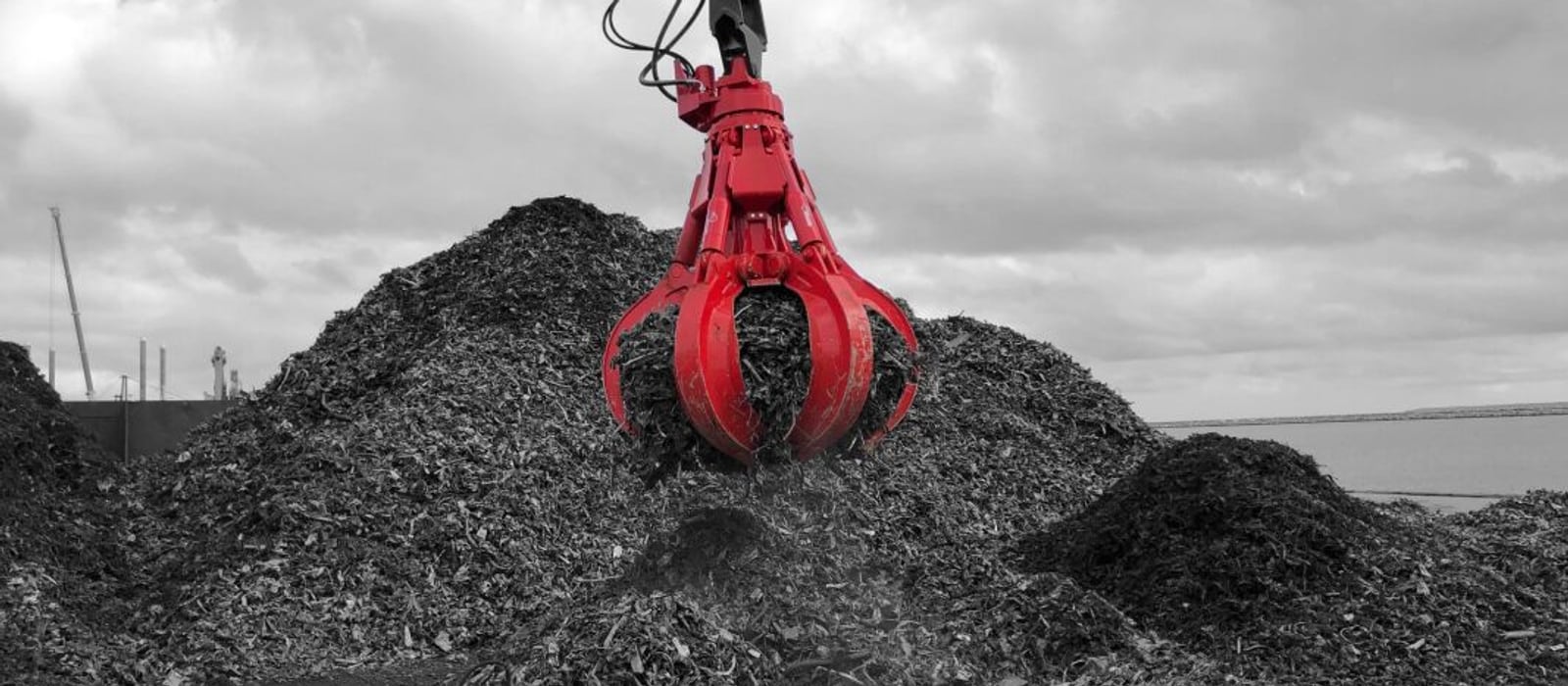

RPG SeriesScrap metal handling with multi-segment grab

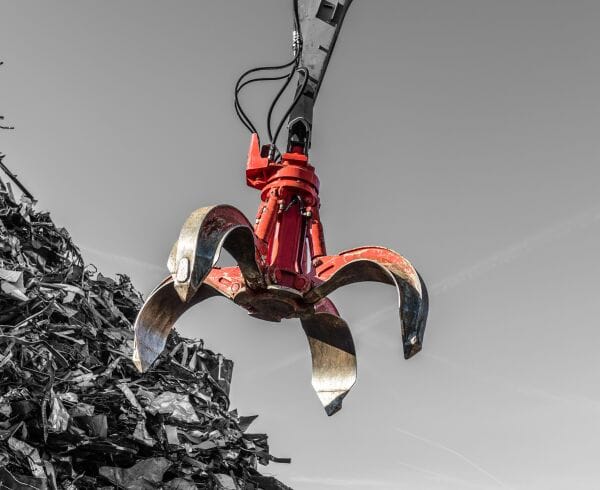

RPG SeriesHARDOX® shells with manganese-steel tips

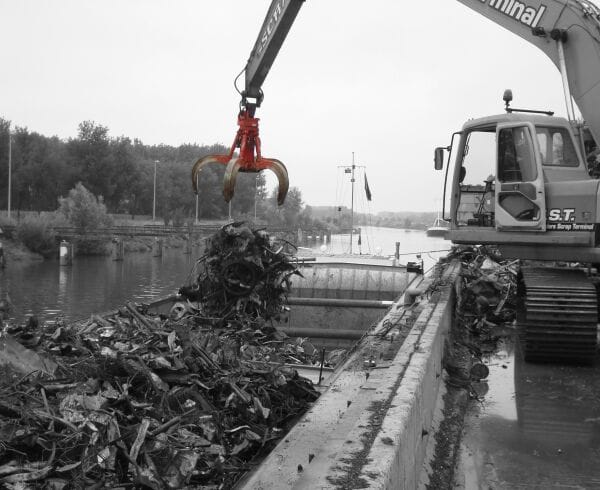

RPG SeriesPowerful clamshell forces on irregular loads

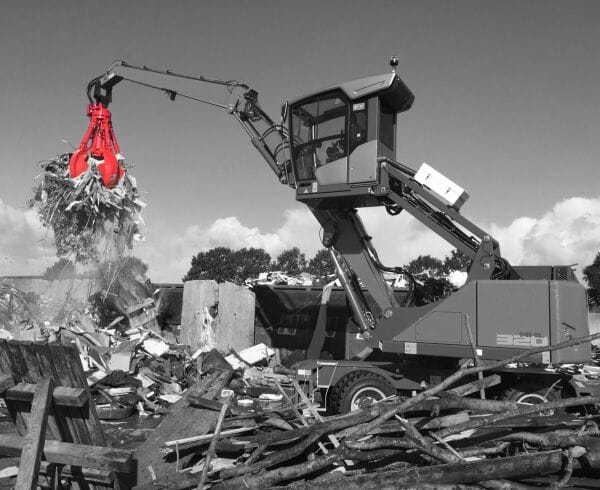

RPG SeriesBulk material handling, daily yard work
Technical Specifications
Scroll horizontally on smaller screens. The measure column stays in view.
| Measure | RPG 4-450 | RPG 4-600 | RPG 4-800 | RPG 6-600 | RPG 6-800 |
|---|---|---|---|---|---|
| Machine class (t) | 16-35 | 16-35 | 16-35 | 30-50 | 30-50** |
| Shell volume (L) | 450 | 600 | 800 | 600 | 800 |
| Service weight half-open (kg)* | 1,600 | 1,675 | 1,725 | 1,950 | 2,000 |
| Service weight closed (kg)* | 1,640 | 1,732 | 1,800 | 2,025 | 2,150 |
| Max. lifting capacity (t) | 8 | 8 | 8 | 10 | 10 |
| Max. cylinder pressure (bar) | 350 | 350 | 350 | 350 | 350 |
| Cylinder oil flow (L/min) | 115 | 115 | 115 | 115 | 115 |
| Motor pressure (bar) | 200 | 200 | 200 | 200 | 200 |
| Motor oil flow (L/min) | 50 | 50 | 50 | 50 | 50 |
* Weight exclusive of adapter. ** RPG 6-800 max, machine class is 38 t for scrap-processing applications. For other applications contact Monty Products.
Get in Touch
Contact our team for Orange Peel Grab specifications, pricing and availability across Australia.
