Demolition & Recycling Attachments
Segregator Bucket
EVB/RVB Series, four EVB excavator models for 13 to 35 tonne carriers and five RVB wheel-loader models for 4.5 to 15 tonne carriers. Volumes 600 to 2,225 L. Eccentric driveline screens material as it digs.
- Models in range
- 9
- EVB carrier class
- 13 - 35 t
- RVB carrier class
- 4.5 - 15 t
- Volume up to
- 2,225 L
EVB/RVB Series, segregator buckets
Dig and screen in one cycle, separate fine soil from coarse aggregate as the bucket fills.
The Rotar EVB and RVB segregator buckets are the jack of all trades for site preparation and demolition cleanup. The vibrating bucket screens material as it digs, fine soil falls through, coarse aggregate stays in. Four EVB models for excavators 13 to 35 tonnes (volumes 600 to 1,200 L) and five RVB models for wheel loaders 4.5 to 15 tonnes (volumes 1,025 to 2,225 L) cover the full carrier spectrum. EVB grid spacing is 42 mm (80 mm on the EVB 1200I), RVB to your specification. Distributed in Australia by Monty Products.
Eccentric Driveline
Eccentrics on the driveline create the back-and-forth motion of the rip sections. Easily accessible lubrication points keep maintenance simple, even in heavy-duty cycles.
Two-Hose Connection
Connect two hydraulic hoses to your excavator or wheel loader, that's it. The hydraulic system is protected against peak pressures and excessive oil volumes for long service life.
Optional Cutting Teeth
Bolt-on replaceable teeth on the cutting edge for harder ground conditions, switch between teeth and a clean lip depending on material.
Range Spectrum
Service weight (kg)
Where each EVB/RVB model sits across the lineup, by service weight, lightest on the left.
Where It Works
Common applications across Australian construction, demolition and civil sites.
Topsoil stripping
Strip and screen topsoil in one pass, clean, useable soil ready for re-spread or stockpile.
Site preparation
Prep building pads and earthworks platforms with screened material on the first pass.
Material recovery
Recover usable aggregate from mixed-fill excavations, separate fines for reuse.
Mixed-material excavation
Excavate sand, gravel and clay seams that need separating into clean material streams.
Sand & gravel separation
Quarry and pit work where the dig also acts as the primary screen.
Backfill processing
Process backfill material in-place, remove oversize and contamination as you load.
The Range in Action
A featured shot plus supporting views, taken on Australian sites.

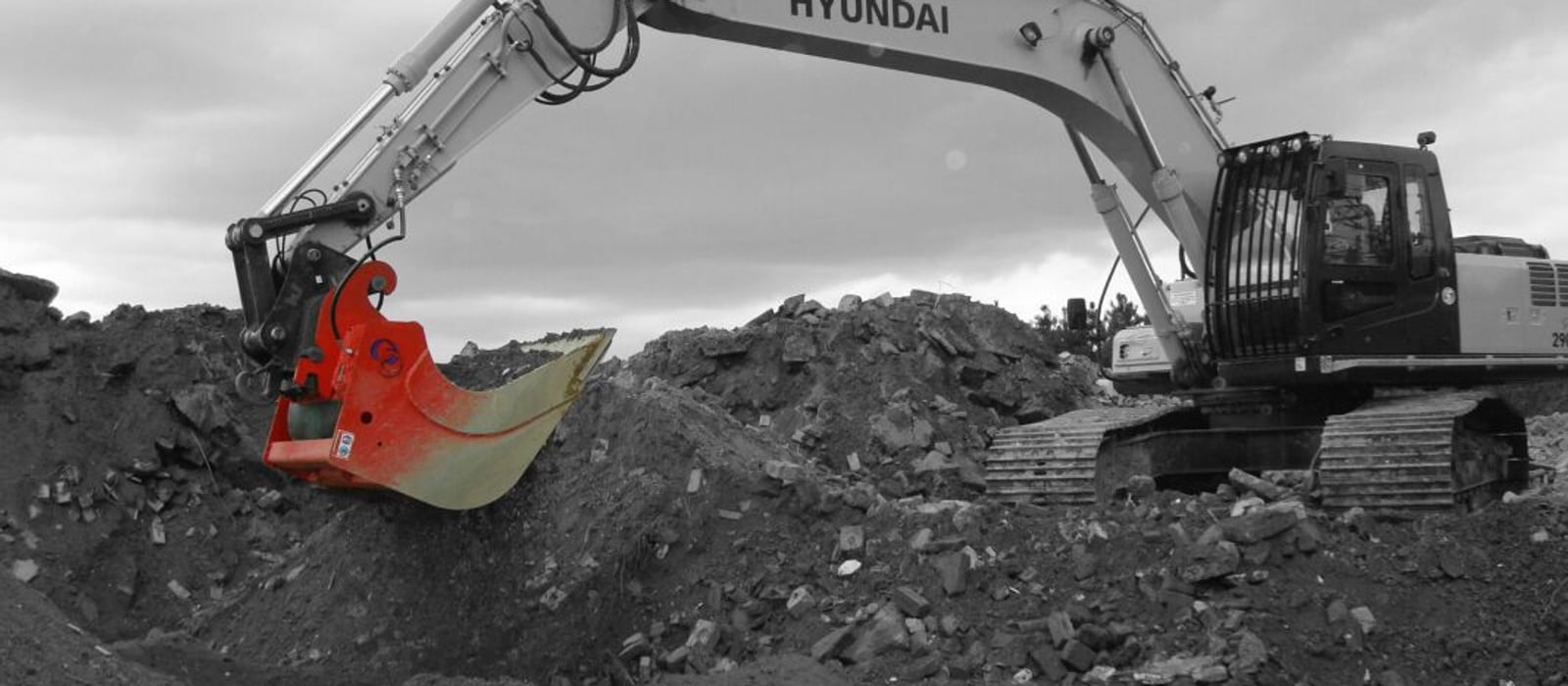

EVB/RVB SeriesSegregator bucket, dig and screen in one cycle

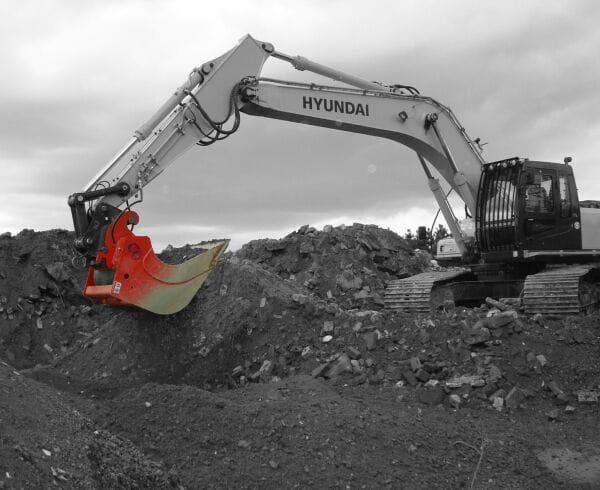

EVB SeriesEccentric driveline with screen ribs

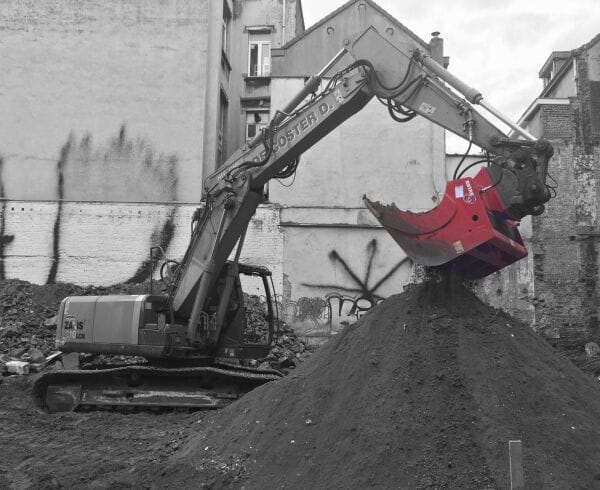

EVB SeriesPeak-pressure protected hydraulics

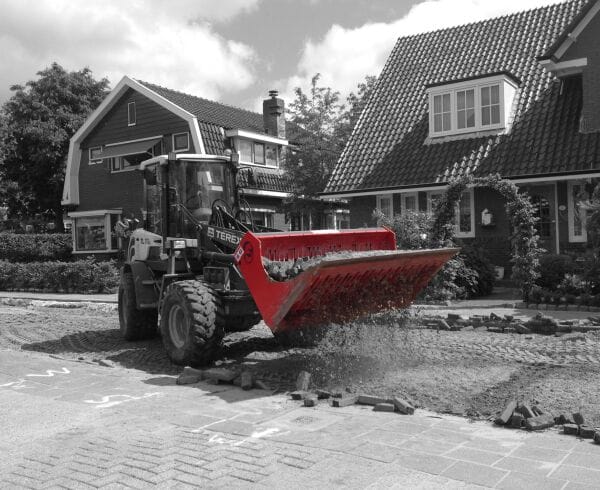

RVB SeriesRVB variant, wheel loader configuration
Technical Specifications
Scroll horizontally on smaller screens. The measure column stays in view.
| Measure | EVB 600 S | EVB 800 S | EVB 1200 S | EVB 1200 I | RVB 800 S | RVB 950 S | RVB 1500 S | RVB 2000 S | RVB 2300 I |
|---|---|---|---|---|---|---|---|---|---|
| Carrier class (t) | 13-18 | 16-25 | 21-35 | 21-35 | 4.5-7.5 | 6-9 | 7.5-10 | 10-12 | 12-15 |
| Service weight (kg)* | 1,130 | 1,426 | 1,965 | 1,950 | 860 | 950 | 1,500 | 1,800 | 2,260 |
| Volume (L) | 600 | 800 | 1,200 | 1,200 | 1,025 | 1,155 | 1,650 | 2,050 | 2,225 |
| Max. motor pressure (bar) | 140 | 140 | 140 | 140 | 140 | 140 | 140 | 140 | 140 |
| Max. oil flow (L/min) | 70-100 | 70-100 | 70-100 | 70-100 | 75 | 75 | 75 | 75 | 75 |
* Weight exclusive of adapter plate with bracket. EVB grid spacing 42 mm (EVB 1200 I = 80 mm). Specs subject to change without notice.
