Attachment Milling Machines
Injection Attachments
KSI Series, three models for ground improvement at scale. KSI 7000 (35-55 t carrier, 4-7 m depth) up to KSI 16000 (120-200 t carrier, 6-16 m depth, 300 kW). Daily outputs of more than 100 linear metres of in-situ soil mixing.
- Models in range
- 3
- Carrier class
- 35 - 200 t
- Mixing depth up to
- 16 m
- Power up to
- 300 kW
KSI Series, soil mixing & injection
Soil mixing at production scale, depths to 16 m, output of 100+ linear metres per day.
Kemroc's KSI Series injection attachments are built for ground improvement and geotechnical works at production scale. Three models cover excavators and dedicated rigs from 35 tonnes (KSI 7000, 7 m depth, 130 kW) up to 200 tonnes (KSI 16000, 16 m depth, 300 kW). Tungsten carbide-tipped mixing tools, high-torque drive motors and hydraulic chain tensioning adapt the head to varying ground conditions. Daily outputs exceed 100 linear metres of in-situ mixing, no excavation required. Distributed in Australia by Monty Products.
Innovative & Efficient Design
Optimal arrangement of tungsten carbide-tipped tools enhances the mixing process, uniform binder distribution across the working depth.
High-Powered Performance
High-torque drive motors deliver ample power to mix heavy soils, cohesive clays and dense fill materials without stalling.
Adjustable Chain Tension
Hydraulic tensioning of the mixing chain matches tool engagement to ground conditions, consistent performance across varying strata.
Range Spectrum
Service weight (kg)
Where each model sits across the range. Lighter on the left, heavier on the right.
Where It Works
Common applications across Australian construction, demolition and civil sites.
Tunnel grouting
Inject cement or chemical grout into surrounding rock formations to consolidate ground ahead of tunnelling.
Pile foundation work
Soil mixing and column construction for pile foundations and ground anchors.
Ground stabilisation
Mix-in-place stabilisation of soft and contaminated soils, cement, lime or specialised binders.
Geotechnical reinforcement
Soil column construction for retaining walls, embankment support and slope stabilisation.
Contamination consolidation
Encapsulation of contaminated ground, bind contaminants in place for environmental remediation.
Mining and quarrying
Pre-grouting ahead of mining advances and consolidation of weak rock zones in active operations.
The Range in Action
A featured shot plus supporting views, taken on Australian sites.

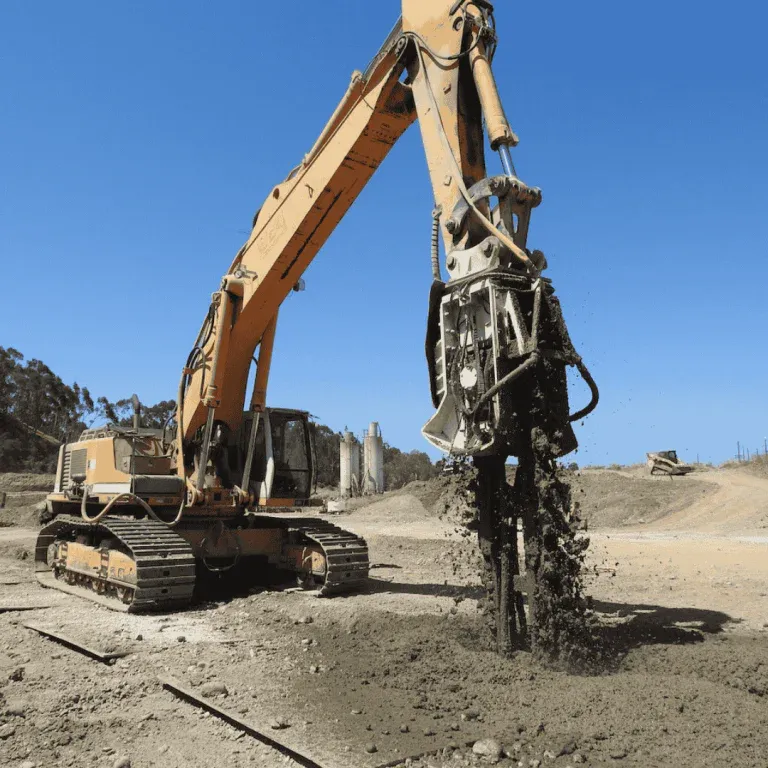

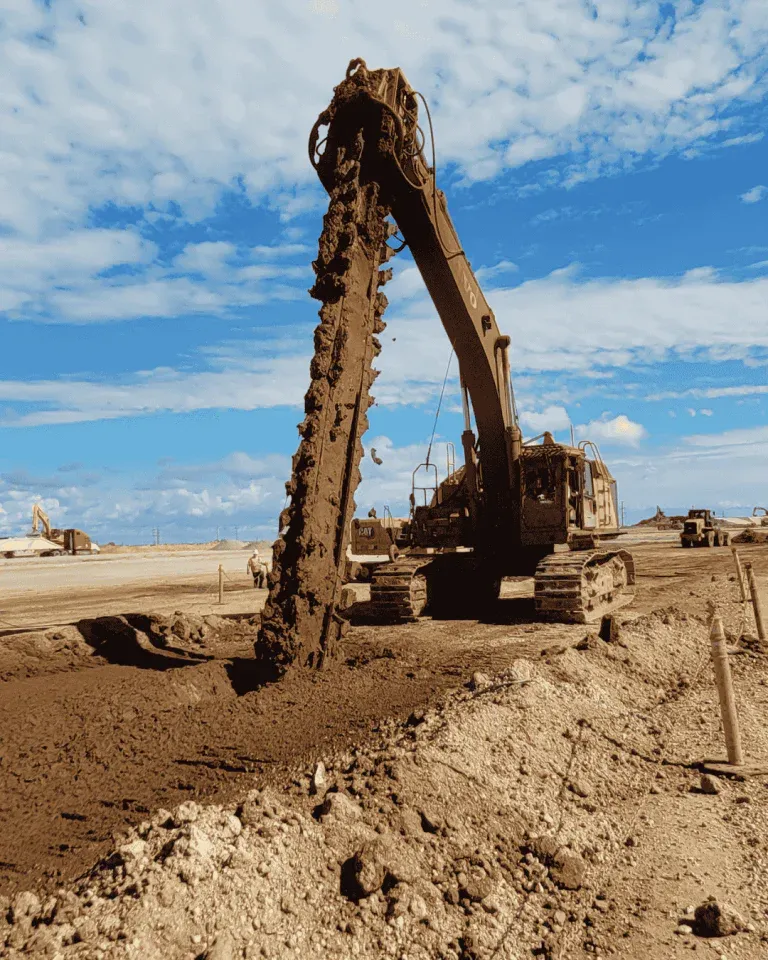

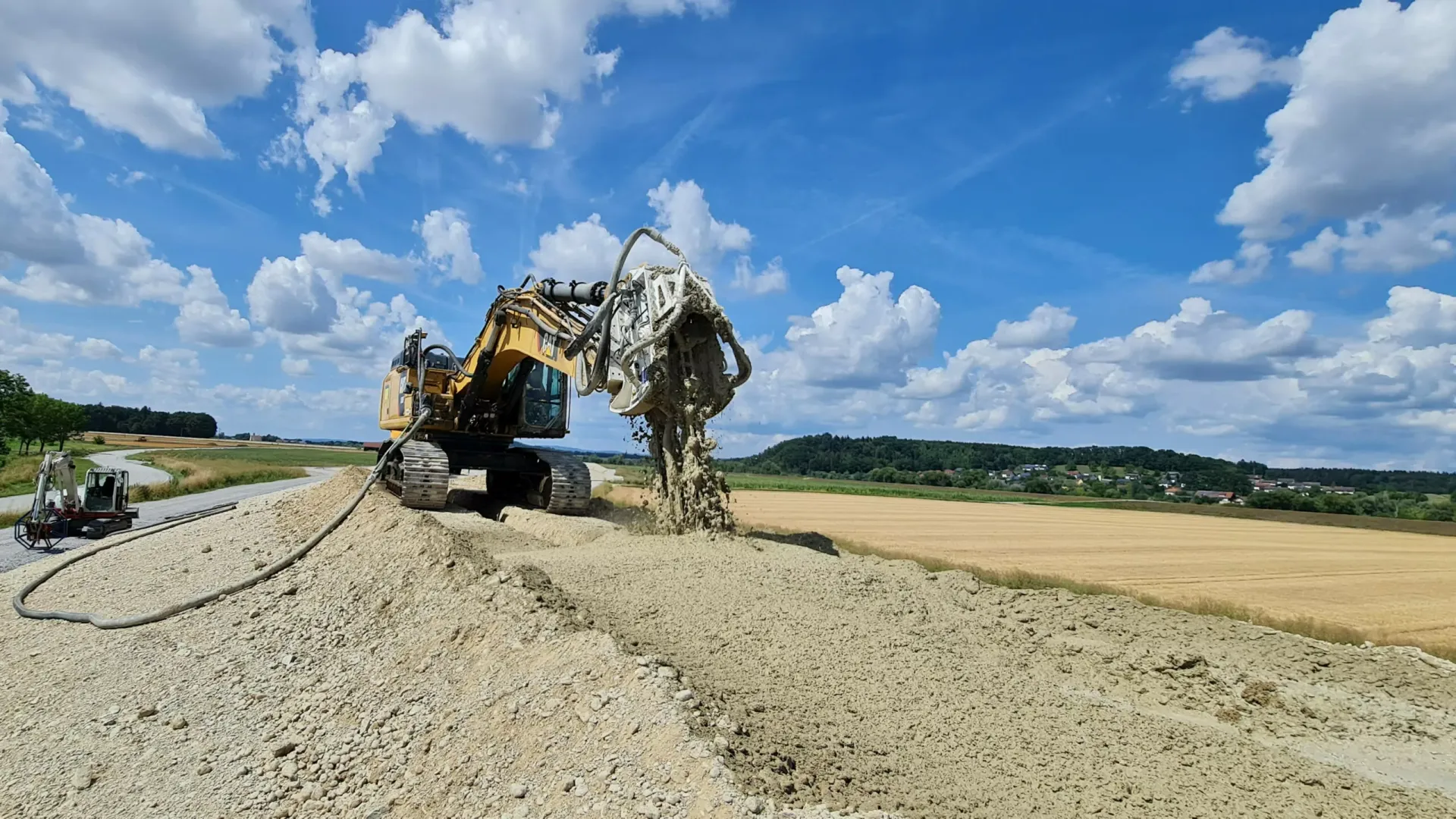

KSI SeriesSoil mixing for ground stabilisation
KSI SeriesTungsten carbide-tipped mixing tools

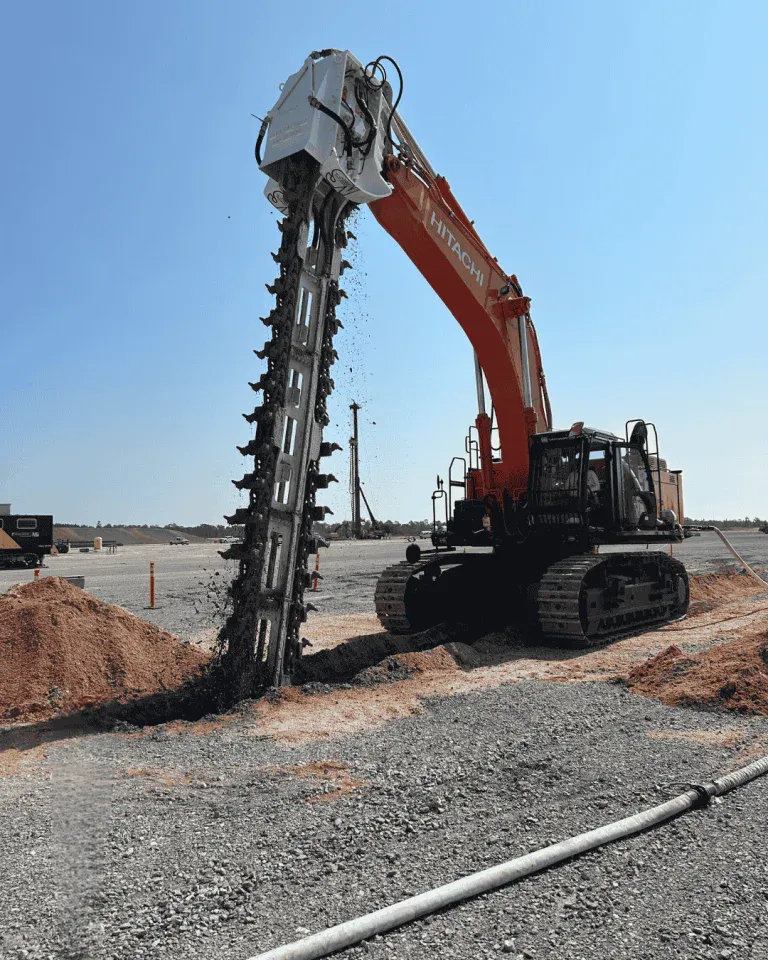

KSI SeriesGeotechnical reinforcement and column construction
KSI SeriesHydraulic chain tensioning across varied conditions
Technical Specifications
Scroll horizontally on smaller screens. The measure column stays in view.
| Measure | KSI 7000 | KSI 12000 | KSI 16000 |
|---|---|---|---|
| Carrier weight (t) | 35-55 | 80-120 | 120-200 |
| Mixing depth (m) | 4-7 | 6-12 | 6-16 |
| Rated power (kW / hp) | 130 / 175 | 220 / 295 | 300 / 400 |
| Max. oil flow (L/min) | 410 | 740 | 980 |
| Service weight at max, depth (kg) | 4,900 | 13,500 | 21,000 |
| Weight per extension (kg) | 400 (1 m) | 800 (1 m) | 1,900 (2 m) |
Indicative figures from Kemroc. Daily outputs of more than 100 linear metres achievable through in-situ mixing without excavation. Carrier type: excavator (KSI 7000) or excavator/dedicated rig (KSI 12000/16000).
Get in Touch
Contact our team for Injection Attachments specifications, pricing and availability across Australia.
