Demolition & Recycling Attachments
Concrete Cutter
RCC Series, four models from RCC 20 to RCC 45 for 18 to 55 tonne excavators. RAMPLIFIER® hydraulic technology doubles cylinder pressure to 700 bar in a split second when heavy resistance hits, delivering up to 1,422 tonnes of closing force at the cutting apex.
- Models in range
- 4
- Carrier class
- 18 - 55 t
- Service weight
- 1,950 - 4,500 kg
- Apex closing force up to
- 1,422 t
RCC Series, concrete cutter attachments
Reinforced concrete in a single bite. RAMPLIFIER® hydraulics deliver 700 bar at the moment you need it.
The Rotar RCC concrete cutter is the premier solution for industrial demolition. Four models cover excavators from 18 to 55 tonnes, with closing forces ranging from 565 t (RCC 20) to 1,422 t (RCC 45) at the apex. The cylinder pressure normally runs at 350 bar, but Rotar's in-house RAMPLIFIER® technology doubles that to 700 bar the instant the cutter encounters heavy resistance. Concrete and rebar fall in seconds. Distributed and supported in Australia by Monty Products.
RAMPLIFIER® at 700 Bar
Two hydraulic cylinders with integrated RAMPLIFIER® technology. Standard pressure runs at 350 bar; the moment heavy resistance hits, pressure doubles to 700 bar. In-house Rotar engineering, not found on any other concrete cutter.
Bolt-On Cutting Teeth
Replaceable cast cutting teeth bolt on without welding, minimises downtime, lets you carry spares for high-wear jobs and protects the basic jaws from damage.
Performance-Steel Body
High-grade performance steel construction with large-diameter hoses, bores and pipes minimising back pressure. Long bearing pivot points support combined loads from every direction.
Range Spectrum
Service weight (kg)
Where each model sits across the range. Lighter on the left, heavier on the right.
Where It Works
Common applications across Australian construction, demolition and civil sites.
Selective demolition
Targeted removal of reinforced concrete sections without disturbing adjacent structures.
Slab cutting
Floor and roof slabs cut to specification, controlled piece sizes for haulage and recycling.
Wall demolition
Vertical and inclined wall sections cut cleanly with minimal vibration.
Reinforced concrete
Heavy rebar and post-tensioned slabs. RAMPLIFIER® delivers the cutting force where breakers stall.
Rebar separation
Sever exposed reinforcement during dismantling for clean material streams.
Low-vibration urban work
Cutting action transfers far less shock than breaking, protects neighbours and adjacent structures.
The Range in Action
A featured shot plus supporting views, taken on Australian sites.

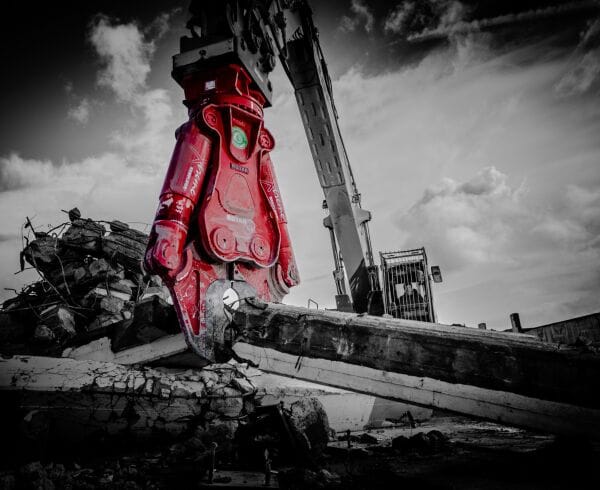

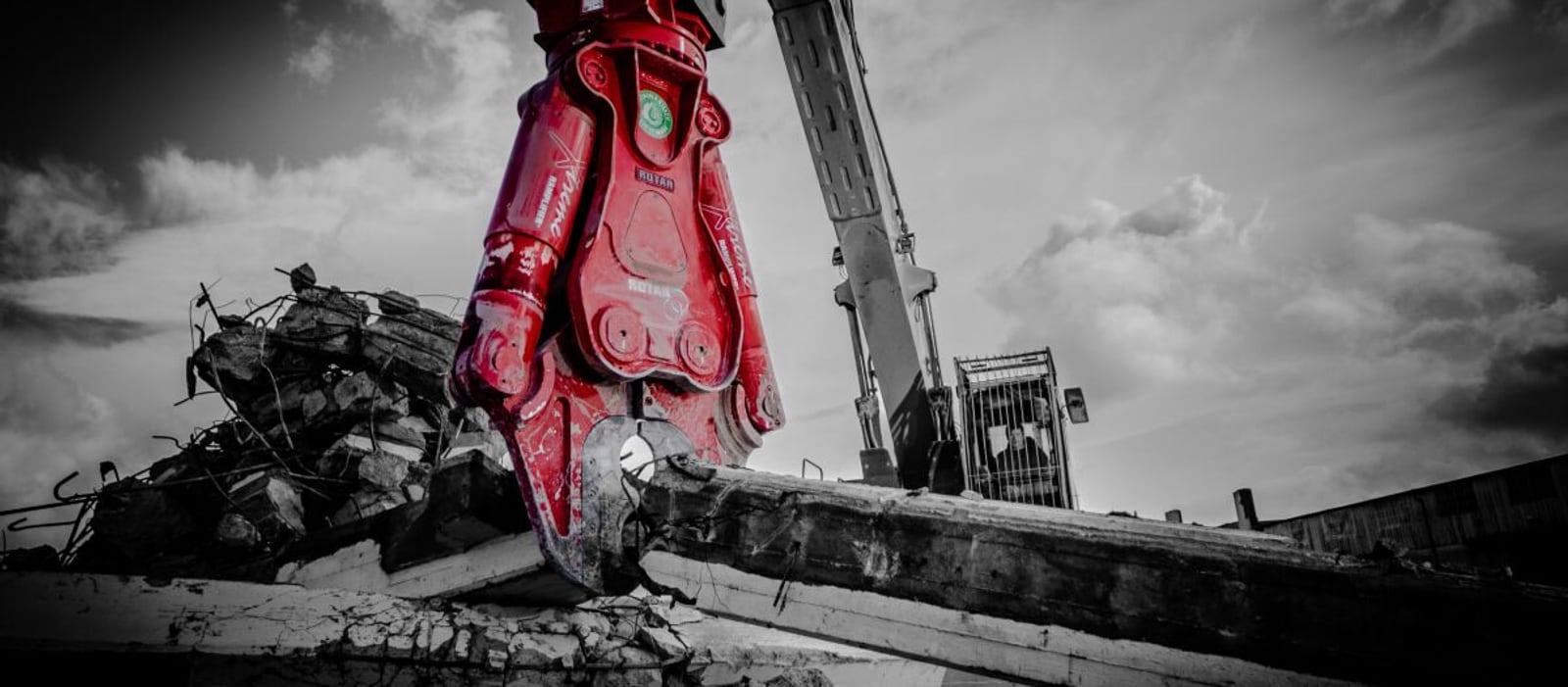

RCC SeriesSelective demolition with low vibration

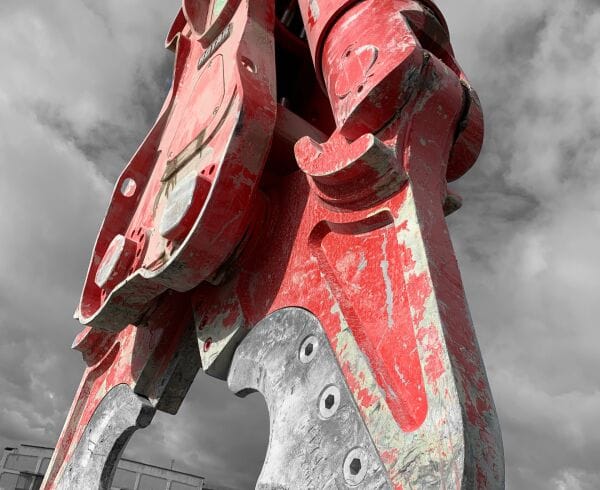

RCC SeriesReplaceable cutting teeth, no welding required

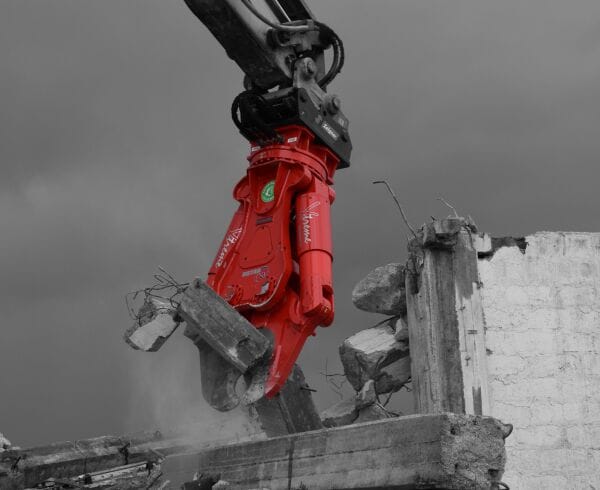

RCC SeriesReinforced concrete cutting in service
RCC SeriesPerformance steel construction throughout
Technical Specifications
Scroll horizontally on smaller screens. The measure column stays in view.
| Measure | RCC 20 | RCC 25 | RCC 30 | RCC 45 |
|---|---|---|---|---|
| Machine class (t) | 18-25 | 20-30 | 25-35 | 38-55 |
| Service weight (kg)* | 1,950 | 2,490 | 2,850 | 4,500 |
| Closing force at A1 (t) | 92 | 96 | 120 | 158 |
| Closing force at B1 (t) | 139 | 141 | 176 | 229 |
| Closing force at C1 / apex (t) | 565 | 640 | 800 | 1,422 |
| Max. cylinder pressure (bar) | 350 (700 RAMPLIFIER®) | 350 (700 RAMPLIFIER®) | 350 (700 RAMPLIFIER®) | 350 (700 RAMPLIFIER®) |
| Cylinder oil flow (L/min) | 150-200 | 200-250 | 200-250 | 250-400 |
| Motor pressure (bar) | 170 | 170 | 170 | 170 |
| Motor oil flow (L/min) | 40 | 40 | 40 | 40 |
* Weight exclusive of adapter plate with bracket. Cycle times and cutting forces are indications only, external factors (excavator setting, hydraulic infrastructure, quick-couplers, fittings) influence performance. Specs subject to change without notice.
Get in Touch
Contact our team for Concrete Cutter specifications, pricing and availability across Australia.
