Attachment Milling Machines
Diamond Cutter Wheels
KDS Series, five models from KDS 20 (192 kg, 2-tonne carrier, 600-1,000 mm blades) up to KDS 50 HD (800 kg, 30-tonne carrier, 800-2,000 mm blades, 805 mm depth). For rock, steel, reinforced concrete and composites.
- Models in range
- 5
- Carrier class
- 2 - 30 t
- Blade diameter up to
- 2,000 mm
- Cutting depth up to
- 805 mm
KDS Series, diamond saw cutter wheels
Diamond-tipped precision, blades to 2,000 mm, cutting depths to 805 mm, spindle speeds to 2,000 rpm.
Kemroc's KDS Series diamond saw cutter wheels are engineered for the toughest cutting jobs, natural stone quarrying, wind turbine blade demolition, reinforced concrete cutting, roadworks and aluminium sheet processing. Five models cover excavators from 2 to 30 tonnes, with blade diameters from 600 mm (KDS 20) up to 2,000 mm (KDS 50/50 HD) and cutting depths from 400 mm up to 805 mm. Dual heavy-duty drive motors run blades up to 2,000 rpm with effective cooling for sustained cut quality. Distributed in Australia by Monty Products.
Built for Strength
Heavy-duty bearings on dual drive motors with rotation speeds up to 2,000 rpm, sustained cutting power for the toughest materials.
Optimal Cooling
Effective blade cooling system maintains cut quality across long runs, preserves blade life and segment performance.
Safety and Longevity
Lateral pull-out protective covers for all saw blade diameters, safe operation, easier blade swaps, longer lifespan.
Range Spectrum
Service weight (kg)
Where each model sits across the range. Lighter on the left, heavier on the right.
Where It Works
Common applications across Australian construction, demolition and civil sites.
Natural stone quarrying
Block extraction from sandstone, granite and marble quarries, clean cuts that maximise yield from the face.
Wind turbine blade demolition
Decommissioning of glass-reinforced composite turbine blades, diamond segments cut where conventional blades fail.
Reinforced concrete cutting
Through-cut heavily reinforced concrete with cleaner edges than breakers, controlled removal where adjacent structures must survive.
Roadworks
Precision cutting of pavement and concrete road surfaces for utility crossings, expansion joints and selective rehabilitation.
Aluminium and composite sheets
Industrial cutting of metal sheets and composite panels in fabrication and decommissioning works.
Precision dimensional cutting
Cut to specification across rigid materials where edge quality and dimensional tolerance both matter.
The Range in Action
A featured shot plus supporting views, taken on Australian sites.

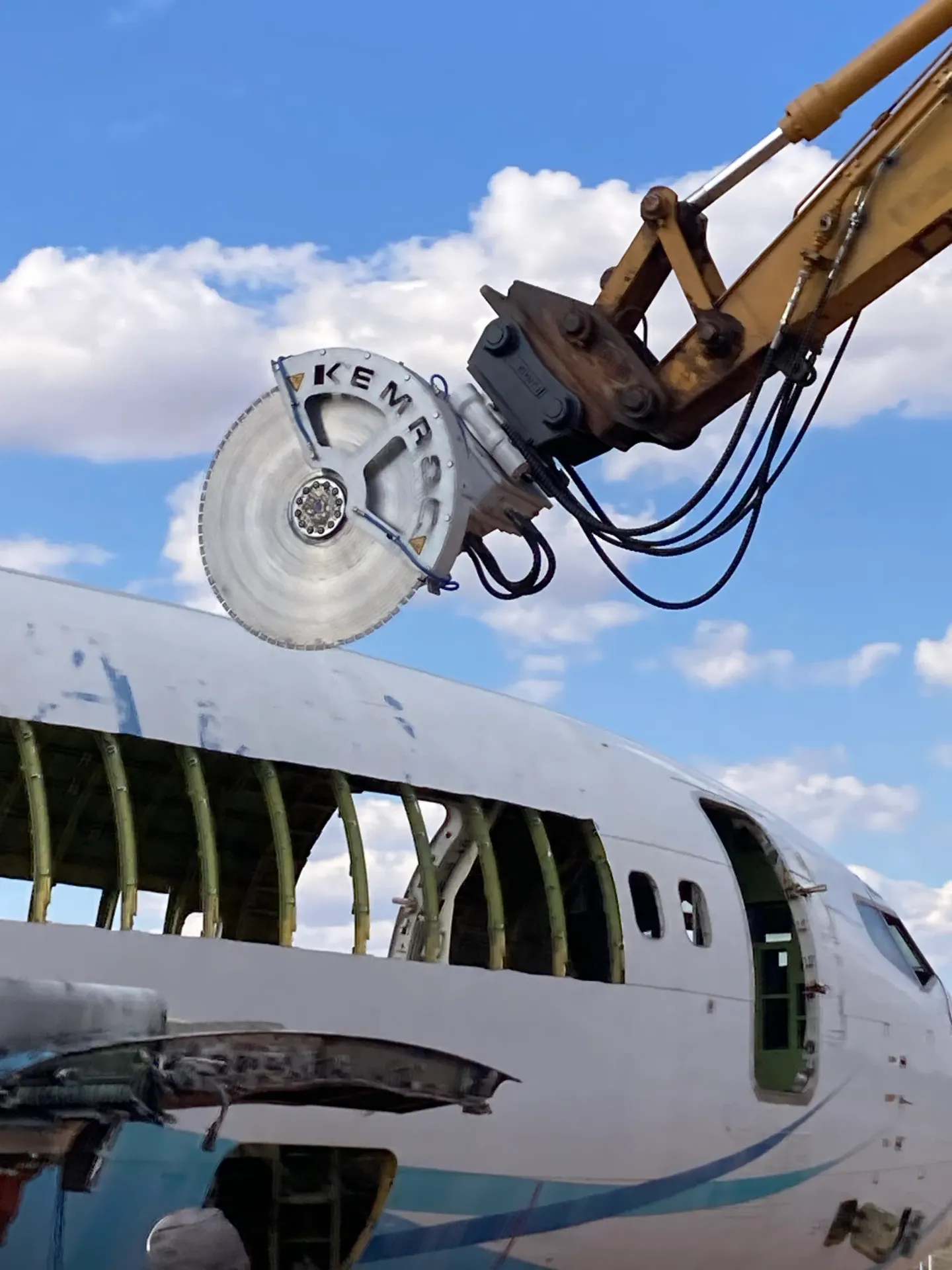

KDS SeriesAircraft recycling with a large-diameter diamond blade
Technical Specifications
Scroll horizontally on smaller screens. The measure column stays in view.
| Measure | KDS 20 | KDS 30 | KDS 40 | KDS 50 | KDS 50 HD |
|---|---|---|---|---|---|
| Carrier weight (t) | 2-4 | 5-10 | 10-16 | 15-25 | 18-30 |
| Service weight range (kg) | 192-207 | 390-445 | 490-565 | 610-710 | 670-800 |
| Oil flow (L/min) | 25-35 | 30-55 | 50-120 | 55-130 | 110-280 |
| Blade diameter (mm) | 600-1,000 | 700-1,400 | 800-1,600 | 800-2,000 | 800-2,000 |
| Cutting depth (mm) | 400 | 550 | 630 | 705 | 805 |
| Spindle speed (rpm) | 1,100 | 1,100 | 1,100 | 1,100 | 1,100 |
Indicative figures from Kemroc. Spindle speed up to 2,000 rpm available with appropriate excavator hydraulics. Service weight range reflects different blade configurations.
