Twelve models from HC20 to HC170, drilling at every output band from 2 kW utilities work to 27 kW deep mining. Surface and underground rock drilling built around progressive blow energy, hydraulic dampening and energy recovery.
- Models in range
- 12
- Output power
- 2 - 27 kW
- Hole diameter
- 26 - 127 mm
- Surface & underground
- Universal
Hydraulic rock drifters
The percussive heart of any drilling rig, twelve sizes covering 26 mm to 127 mm holes, surface and underground.
Montabert's HC drifter line is the broadest in the industry, twelve models spanning the compact HC20 (2-4 kW, 26-51 mm holes) right up to the HC170 (17-27 kW, 89-127 mm holes). Every model uses Montabert's signature progressive blow energy design, a trapezoidal shock wave that transmits cleanly at the couplings, improving bit penetration and reducing rod stress. Hydraulic dampening absorbs reflected energy, the energy recovery valve recycles rebound into subsequent blows, and reverse percussion (standard or optional depending on size) extracts stuck rods from fractured ground. Universal carrier compatibility lets these drifters run on the rigs you already operate. Distributed and supported in Australia by Monty Products.
Progressive Blow Energy
A trapezoidal shock wave from the patented piston design transmits cleanly at the couplings. Better bit penetration with less stress on drilling rods and connections.
Hydraulic Dampening
An integrated dampening circuit absorbs the reflected portion of each blow, protects the drifter from internal pressure peaks while maintaining consistent thrust and efficiency.
Energy Recovery Valve
Rebound energy from each blow is recycled into the next. Improved shock transmission, lower tool vibration and reduced operating cost per metre drilled.
Where It Works
Common applications across Australian construction, demolition and civil sites.
Underground mining
Production drilling, development drilling and ground support across hard-rock metalliferous mines.
Surface mining & quarrying
Blast-hole drilling, pre-splitting and secondary drilling on open-cut operations.
Tunnelling
Drift, drive and tunnel face drilling, full-face and bench rounds for civil and mining tunnels.
Civil drilling
Foundation drilling, anchor holes and rock support on infrastructure projects.
Geotechnical
Investigation drilling, ground anchors and reinforcement holes for slope stability and retaining works.
Production drilling
Long-hole and short-hole production drilling across narrow-vein and bulk mining methods.

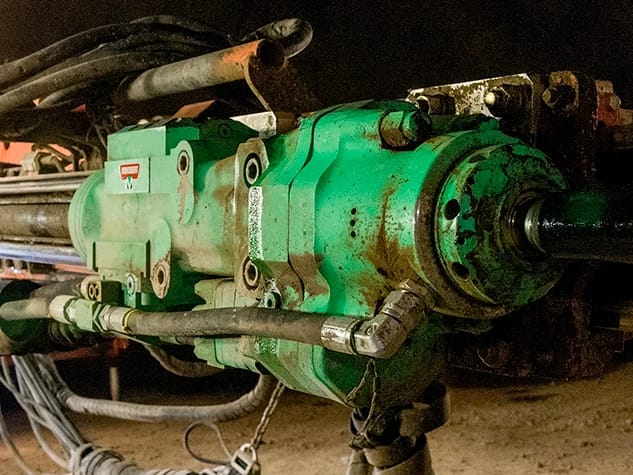

The Range in Action
A featured shot plus supporting views, taken on Australian sites.
HC SeriesTwelve-model range covering surface and underground drilling

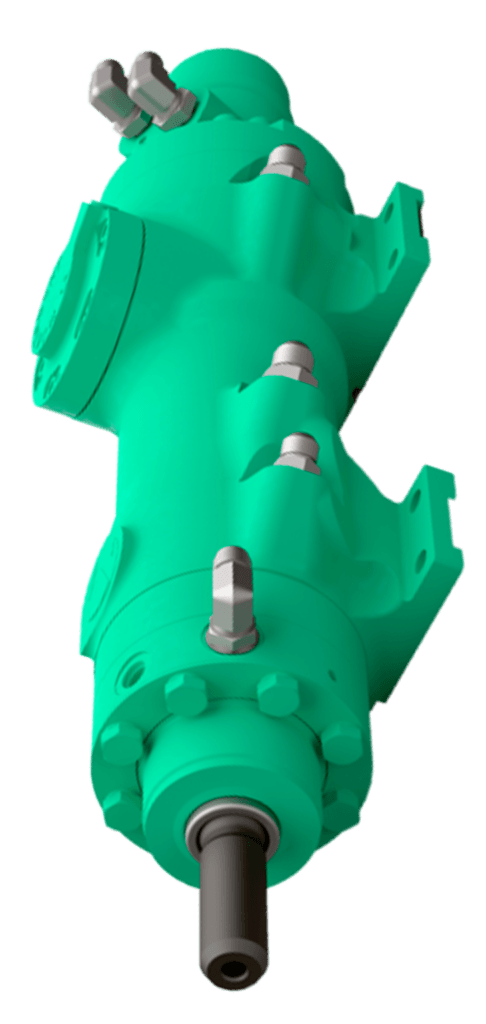

HC20Entry of the HC line. 2-4 kW for 26-51 mm holes

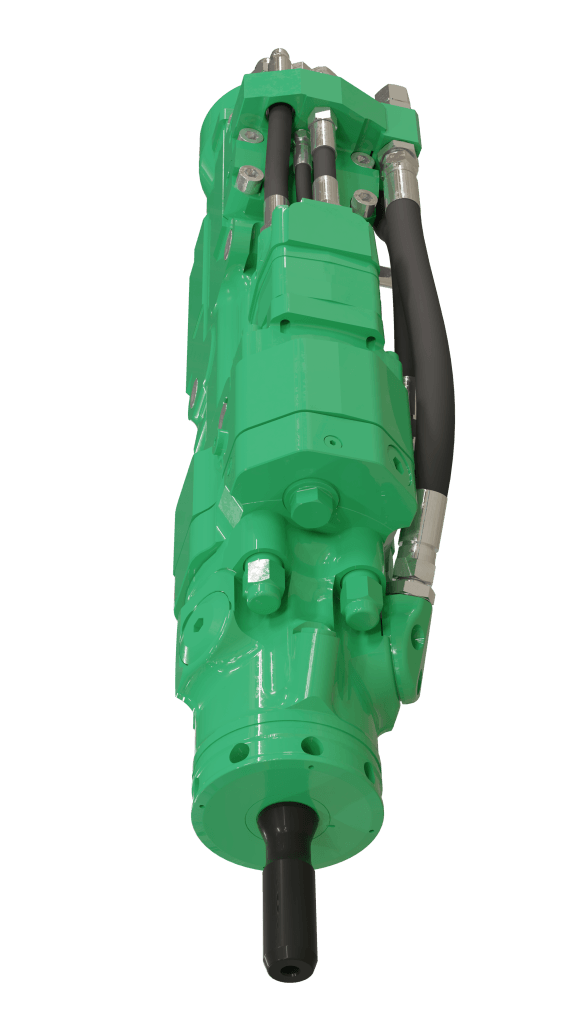

HC95 SAPopular workhorse. 17-21 kW with optional reverse percussion

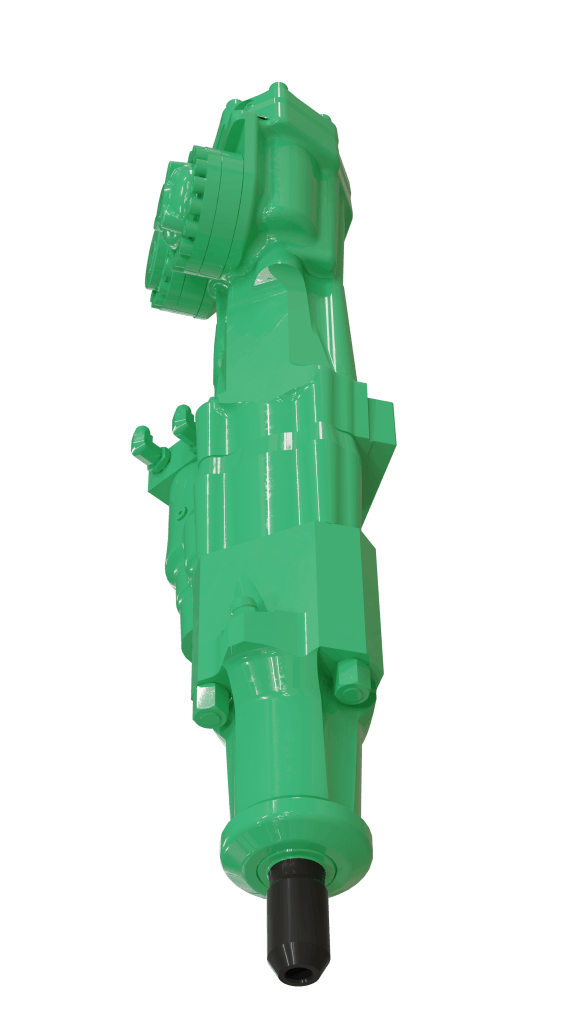

HC170Top of the range. 17-27 kW for 89-127 mm holes
Technical Specifications
Scroll horizontally on smaller screens. The measure column stays in view.
| Measure | HC20 | HC25 | HC28 | HC50 | HC55 | HC95 LM | HC95 LQ | HC95 SA | HC110 | HC112 | HC150 | HC160 | HC170 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output power (kW) | 2-4 | 5-8 | 6-9.5 | 7-13 | 10.2-15.7 | 16-21 | 17-24 | 17-21 | 17-27 | 19-26 | 16-21 | 17-27 | 17-27 |
| Hole diameter (mm) | 26-51 | 32-51 | 32-64 | 45-76 | 32-64 | 45-76 | 51-102 | 45-76 | 51-89 | 51-127 | 76-115 | 89-127 | 89-127 |
| Reverse percussion | - | - | - | - | - | Optional | Standard | Optional | Optional | Optional | Standard | Standard | Optional |
Indicative figures from Montabert. Full per-model rod size, oil flow, frequency and pressure data available on request, contact Monty Products for application engineering and sizing.
