Demolition & Recycling Attachments
Demolition Pulveriser
RDP Series, four models from RDP 20S to RDP 42S for 15 to 70 tonne excavators. Cycle times as fast as 1.2 seconds and closing forces up to 195 tonnes, primary demolition built for serious throughput.
- Models in range
- 4
- Carrier class
- 15 - 70 t
- Cycle time from
- 1.2 s
- Closing force up to
- 195 t

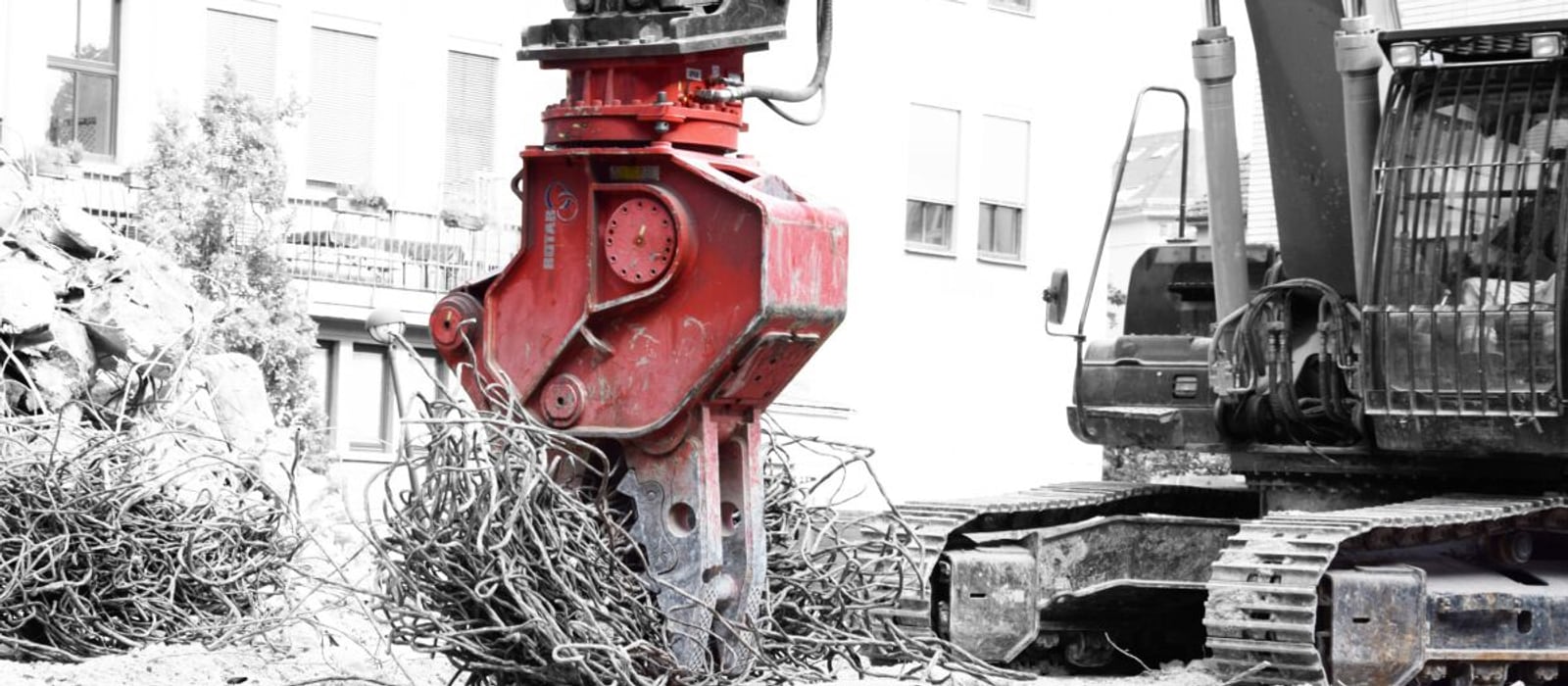

RDP Series, primary demolition pulveriser
Crush concrete in 1.2 seconds, primary demolition that earns its keep on every cycle.
The Rotar RDP demolition pulveriser is built for primary demolition where cycle time is everything. Four models cover excavators from 15 to 70 tonnes, with closing forces from 100 t (RDP 20S) up to 195 t (RDP 42S) at the second jaw position. The custom Rotar speed valve closes the jaws fast, then automatically switches to power mode the moment the cycle needs more cutting force. Concrete crushed to aggregate, rebar severed in the same bite, materials separated for on-site recycling. Distributed and supported in Australia by Monty Products.
Speed Valve, Auto Power Mode
Rotar's custom speed valve closes the jaws as fast as 1.2 seconds, then automatically switches to power mode the moment the cycle demands more cutting force. No operator intervention required.
Replaceable Cast Teeth
High-grade wear-resistant cast teeth bolt on for fast field replacement. The body is assembled from performance steel, strong cycle after cycle with a low maintenance load.
360° Rotating Head
Heavy-duty rotating upper head and heavy-duty slewing ring with high-torque hydraulic motors. Handles heavy loading from any position with complete cycle control without repositioning.
Range Spectrum
Service weight (kg)
Where each model sits across the range. Lighter on the left, heavier on the right.
Where It Works
Common applications across Australian construction, demolition and civil sites.
Primary demolition
Bring down reinforced concrete structures, slabs and walls at production speed.
On-site recycling
Crush demolition material to aggregate where it falls, eliminate truck cycles.
Concrete crushing
Reduce slabs, footings and structural sections to truckable, recyclable aggregate.
Rebar separation
Cast teeth sever reinforcement during the crush cycle, clean material streams.
Aggregate production
Generate consistent crushed concrete for backfill, road base and recycled product sales.
Slab demolition
Floor and roof slab takedown with controlled piece sizes, safe progression.
The Range in Action
A featured shot plus supporting views, taken on Australian sites.

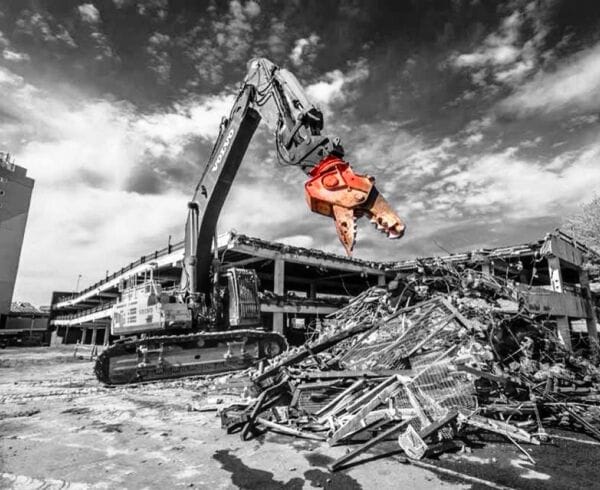

RDP SeriesPrimary demolition, crush and separate in one cycle

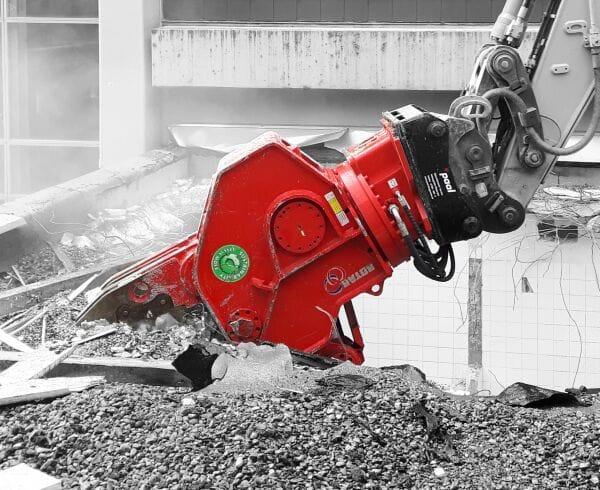

RDP SeriesCast cutting teeth and integrated rebar cutter

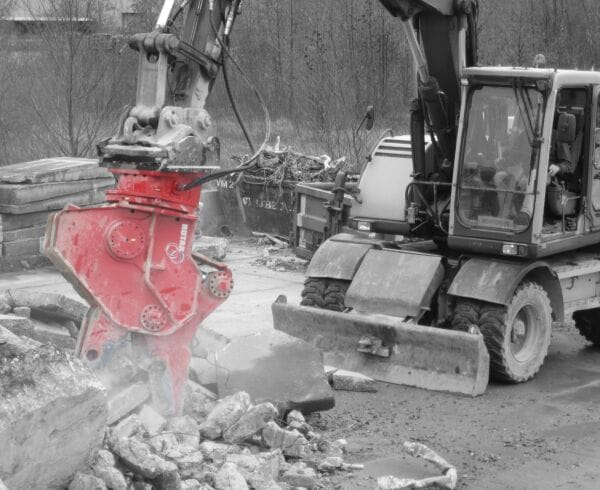

RDP SeriesReinforced concrete crushing on-site
RDP SeriesRotating upper head with heavy-duty slewing ring
Technical Specifications
Scroll horizontally on smaller screens. The measure column stays in view.
| Measure | RDP 20S | RDP 25S | RDP 32S | RDP 42S |
|---|---|---|---|---|
| Machine class (t) | 15-25 | 22-35 | 32-50 | 45-70 |
| Service weight (kg)* | 2,100 | 2,765 | 3,100 | 4,500 |
| Cycle open / close (s) | 1.2-1.9 | 2.2-2.4 | 2.5-2.8 | 2.6-2.8 |
| Closing force at position 1 (t) | 62 | 70 | 95 | 105 |
| Closing force at position 2 (t) | 100 | 107 | 152 | 195 |
| Max. cylinder pressure (bar) | 350 | 350 | 350 | 350 |
| Cylinder oil flow (L/min) | 150-250 | 150-250 | 250-300 | 250-300 |
| Motor pressure (bar) | 170 | 170 | 170 | 170 |
| Motor oil flow (L/min) | 40-60 | 40-60 | 40-60 | 40-60 |
* Weight exclusive of adapter plate with bracket. Cycle times and cutting forces are indications only, external factors influence performance. Specs subject to change without notice.
