Demolition & Recycling Attachments
Scrap Shear
RSS Series, six models from RSS 20 to RSS 150. Excavator class 13 to 130 tonnes (boom or dipper mount). Cuts structural steel, pipes and mixed metals with throat cutting forces up to 1,995 tonnes.
- Models in range
- 6
- Carrier class
- 13 - 130 t
- Throat cutting force up to
- 1,995 t
- Service weight up to
- 12,500 kg
RSS Series, scrap shear
Through-cut tonnes of steel in the blink of an eye. 1,995 t at the throat, fast cycle to mill-ready pieces.
The Rotar RSS scrap shear is built for production scrap processing. Six models cover excavators from 13 t (RSS 20 on boom) up to 130 t (RSS 150 on dipper). Throat cutting forces reach 1,995 t on the RSS 150, with rapid cycle times across the range. Replaceable cutting knives, completely encased nose knives, and a jaw design that forces material deep into the highest cutting-power zone. Double hose connection on the swivel keeps oil flow optimum and stops heat building up. Distributed in Australia by Monty Products.
Material Forced to the Throat
Jaw geometry forces material deep into the throat where the highest cutting power is available, up to 1,995 t on the RSS 150. Replaceable cutting knives plus encased nose knives.
Speed Valve in the Cylinder
The hydraulic cylinder includes Rotar's integrated speed valve, fast jaw closure with effortless switch to power mode the moment the cut needs more force.
Dual-Hose Swivel Connection
Double hose connection on the swivel with large-diameter hoses, bores and pipes creates optimum oil flow, stops heat buildup, reduces fuel consumption.
Range Spectrum
Service weight (kg)
Where each model sits across the range. Lighter on the left, heavier on the right.
Where It Works
Common applications across Australian construction, demolition and civil sites.
Scrap yard processing
Reduce mixed scrap to mill-ready pieces, the everyday workhorse for steel recyclers.
Structural steel cutting
Through-cut beams, columns, channels and angle sections during decommissioning.
Pipe & tube cutting
Process pipework, tube and conduit from industrial demolition and infrastructure projects.
Mixed metal handling
Ferrous and non-ferrous metals in the same workflow, cut and sort in one cycle.
Decommissioning
Industrial plant, ship and rolling-stock decommissioning, bulk steel reduction.
Rebar & cable cutting
Severing reinforcement and electrical cable during selective demolition.
The Range in Action
A featured shot plus supporting views, taken on Australian sites.

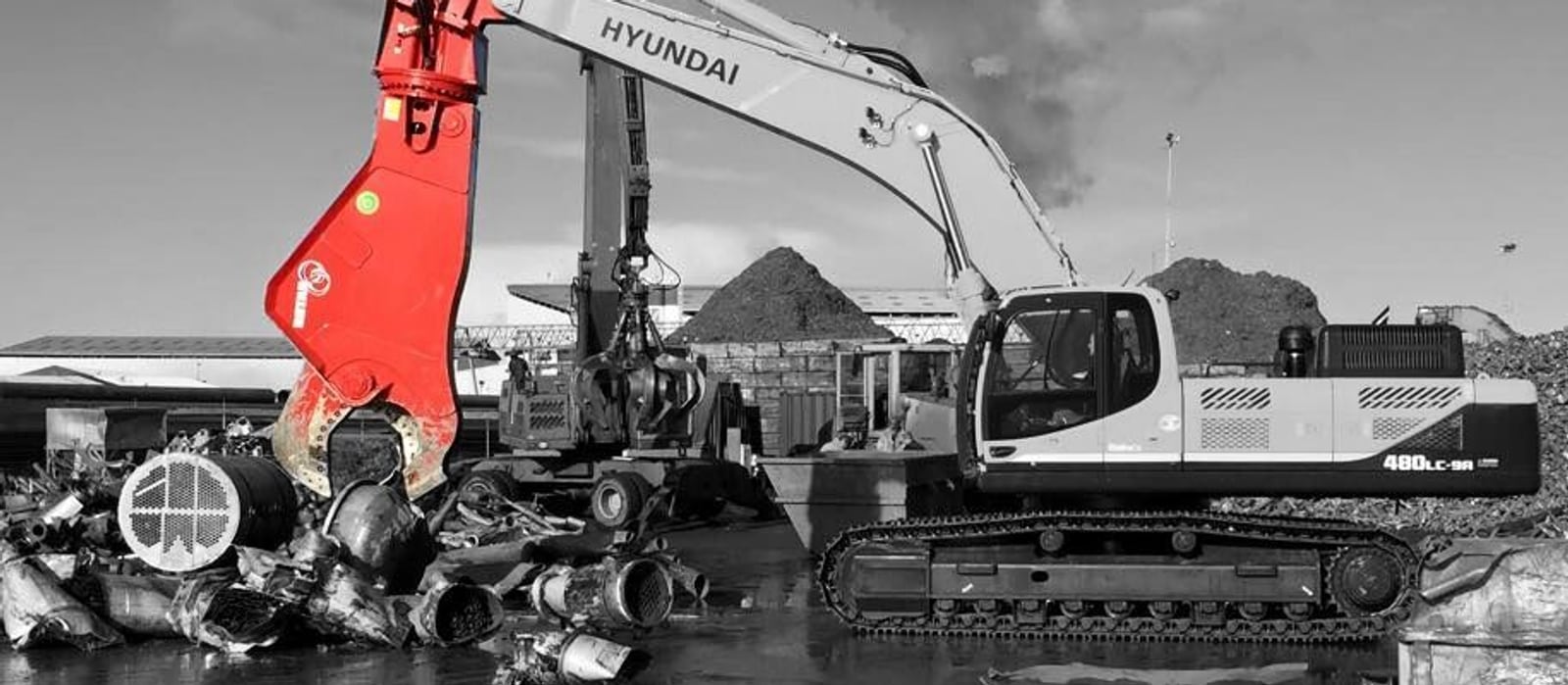

RSS SeriesScrap yard processing, structural steel reduction

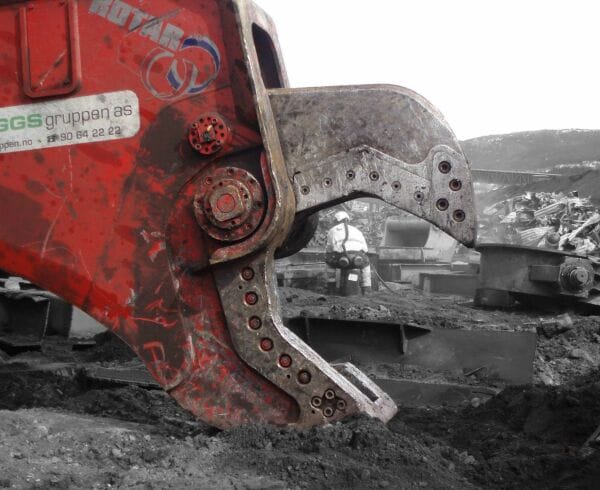

RSS SeriesReplaceable cutting knives + encased nose knives

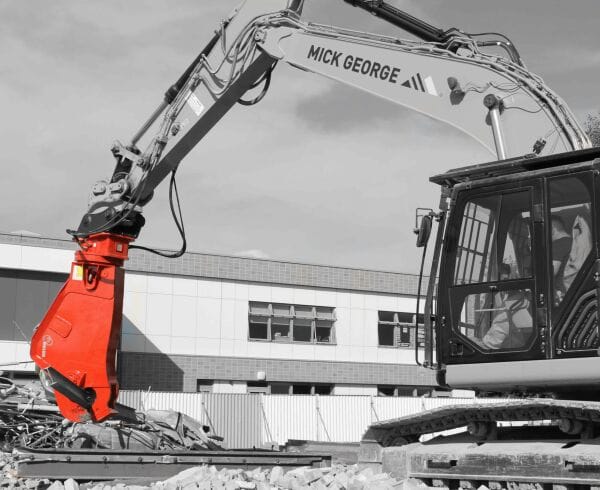

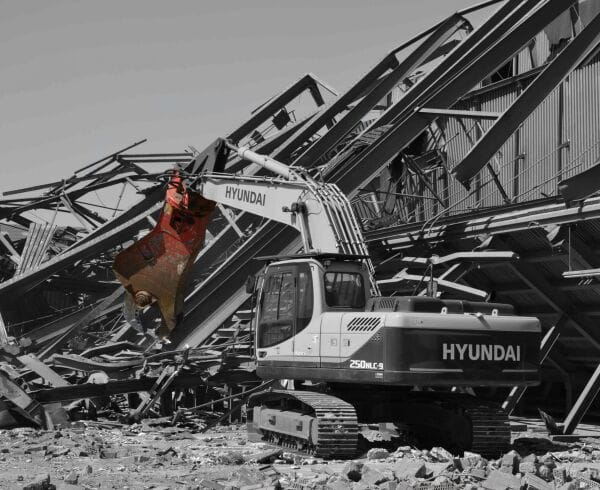

RSS SeriesThrough-cutting structural steel
RSS SeriesDual hose connection on rotating swivel
Technical Specifications
Scroll horizontally on smaller screens. The measure column stays in view.
| Measure | RSS 20 | RSS 30 | RSS 40 | RSS 50 | RSS 100 | RSS 150 |
|---|---|---|---|---|---|---|
| Machine class on boom (t) | 13-23 | 20-27 | 25-32 | 30-45 | 45-68 | 60-85 |
| Machine class on dipper (t) | 20-32 | 32-40 | 38-60 | 50-72 | 65-90 | 110-130 |
| Service weight (kg)* | 2,470 | 3,590 | 4,440 | 6,180 | 8,250 | 12,500 |
| Cutting force at tip (t) | 130 | 156 | 168 | 201 | 242 | 332 |
| Cutting force at apex (t) | 240 | 296 | 319 | 390 | 467 | 693 |
| Cutting force at throat (t) | 532 | 664 | 813 | 955 | 1,338 | 1,995 |
| Max. cylinder pressure (bar) | 350 | 350 | 350 | 350 | 350 | 350 |
| Cylinder oil flow (L/min) | 150-240 | 300-450 | 300-450 | 350-450 | 500-750 | 960 |
| Motor oil flow (L/min) | 50 | 50 | 50 | 50 | 50 | 50 |
* Weight exclusive of adapter plate with bracket. Cutting forces measured at 350 bar, indications only, external factors influence performance.
Get in Touch
Contact our team for Scrap Shear specifications, pricing and availability across Australia.
