Attachment Milling Machines
Patch Planers
EX Series, six models from EX 20 (1-tonne carrier, 200 mm width) up to EX 70 HD (25-tonne carrier, 600 mm width). Milling depths up to 190 mm, ready-to-overlay output.
- Models in range
- 6
- Carrier class
- 1 - 25 t
- Milling depth up to
- 190 mm
- Milling width up to
- 600 mm
EX Series, asphalt and concrete milling
Six sizes, depths to 190 mm, widths to 600 mm, ready-to-overlay output every cycle.
The Kemroc EX range of patch planers covers six models from EX 20 (1-tonne carriers, 200 mm milling width) up to EX 70 HD (25-tonne carriers, 600 mm width). Milling depths from 70 mm (EX 20/20 HD) up to 190 mm (EX 60 HD/70 HD) handle asphalt repair, screed removal and contaminated concrete milling. Smooth cut edges and fine-grained cut material, output ready for direct overlay. Distributed and supported in Australia by Monty Products.
Built to Last
High-torque adjustable hydraulic motor with sturdy support frame and wear-resistant slides, sustained production across long milling runs.
Efficient and Precise
Smooth cut edges and fine-grained cut material, output is ready for direct overlay rather than further preparation.
Dust Minimisation
Integrated water jets for dust control with optional vacuum extraction connections, meets indoor and noise-sensitive site requirements.
Range Spectrum
Service weight (kg)
Where each model sits across the range. Lighter on the left, heavier on the right.
Where It Works
Common applications across Australian construction, demolition and civil sites.
Asphalt repair
Mill out failed sections of road surface to a precise depth, leaves clean, square edges ready for overlay.
Contaminated concrete removal
Surface-mill contaminated or damaged concrete in industrial sites, controlled depth, no surrounding damage.
Screed milling
Strip out failed or contaminated screed layers from concrete substrates, readies the slab for new screed or overlay.
Pothole and patch repair
Cut out pothole margins to clean square edges before refill, proper repairs that don't fail at the seam.
Pavement rehabilitation
Selective milling of pavement sections during civil and highway maintenance.
Dust-controlled milling
Integrated water jets for dust control; optional vacuum extraction connection for indoor work.
The Range in Action
A featured shot plus supporting views, taken on Australian sites.

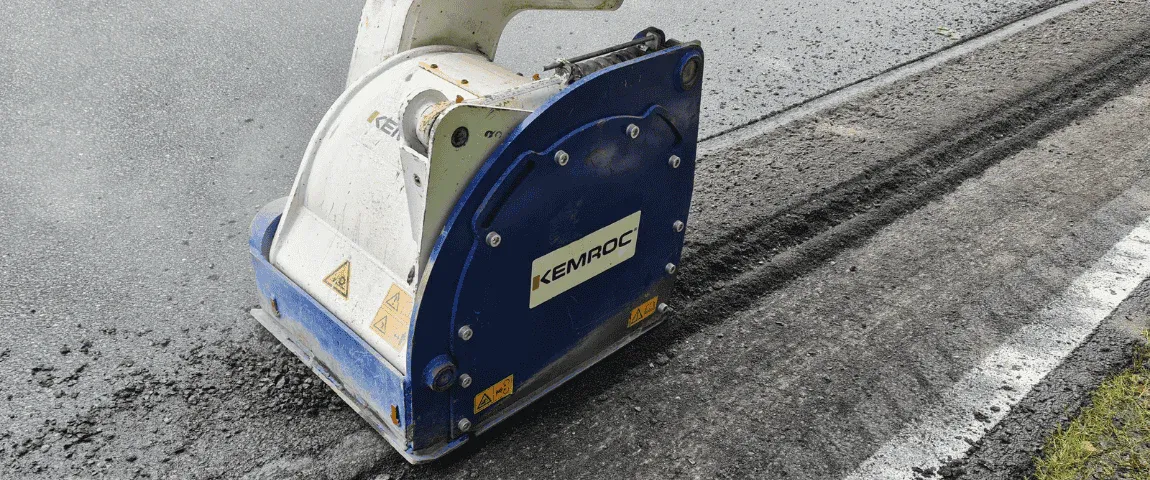

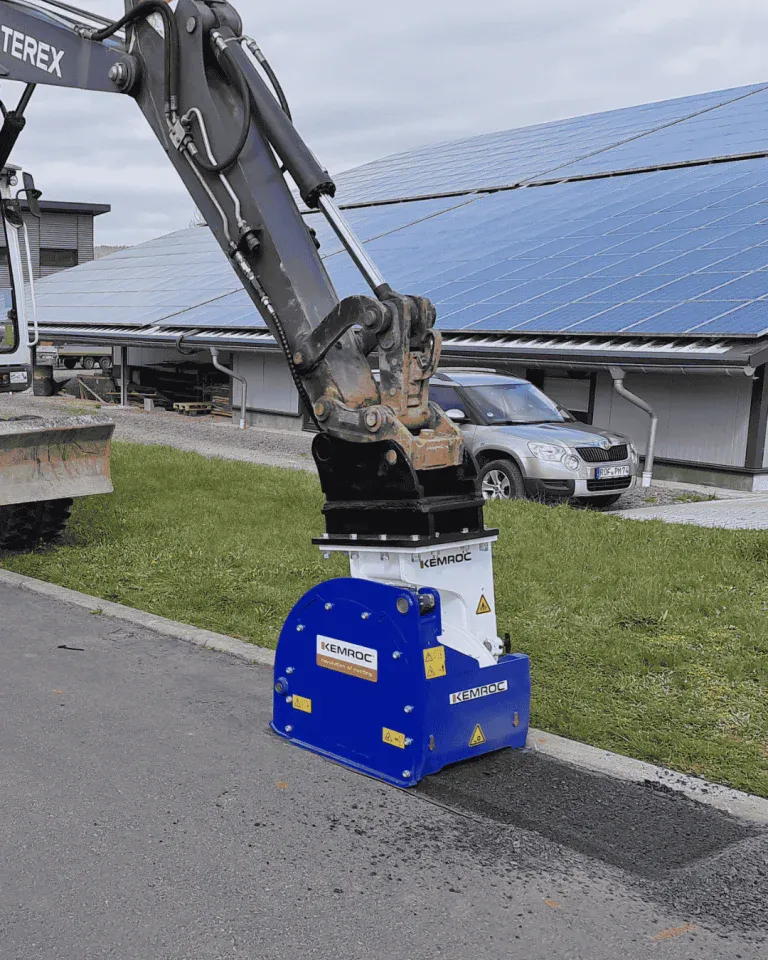

EX SeriesAsphalt patch repair, clean, square edges

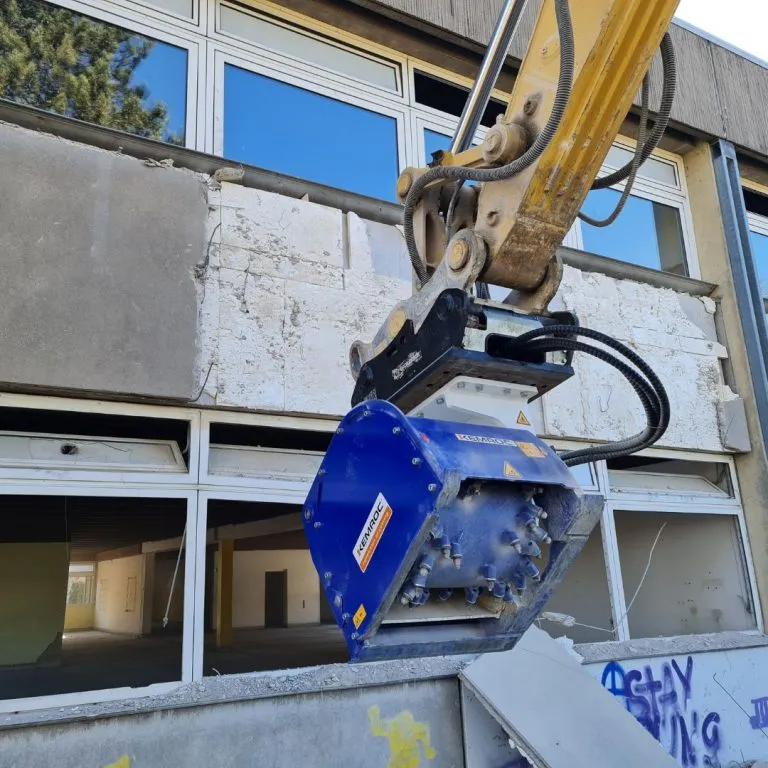

EX SeriesHigh-torque hydraulic drive with wear-resistant slides

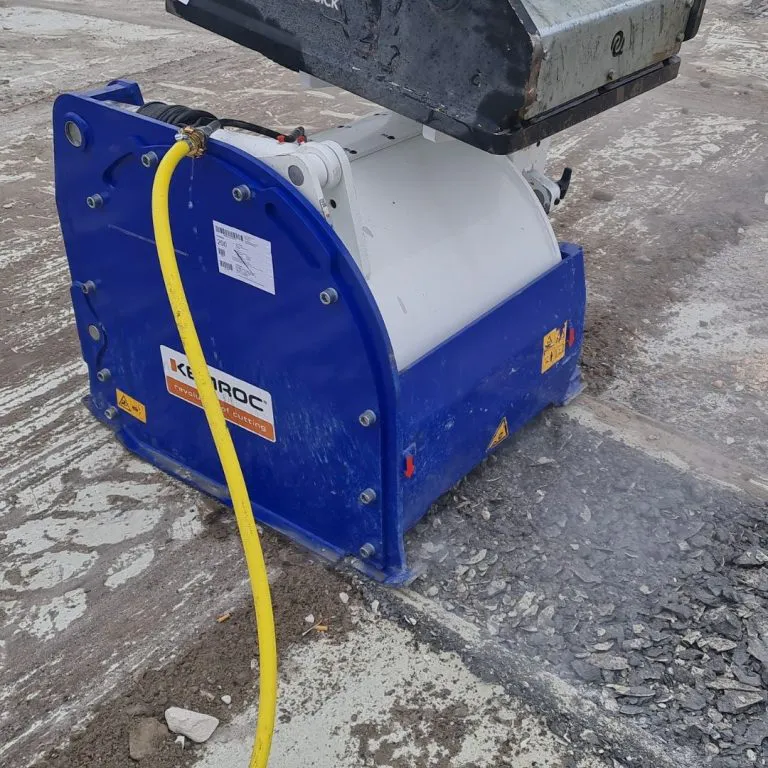

EX SeriesConcrete and screed milling to precise depth
EX SeriesSix sizes for 1 to 25 tonne carriers
Technical Specifications
Scroll horizontally on smaller screens. The measure column stays in view.
| Measure | EX 20 | EX 20 HD | EX 30 HD | EX 45 HD | EX 60 HD | EX 70 HD |
|---|---|---|---|---|---|---|
| Carrier weight (t) | 1-3 | 2-4 | 5-10 | 10-16 | 15-23 | 18-25 |
| Service weight (kg) | 165 | 182 | 420 | 730 | 1,230 | 1,230 |
| Oil flow (L/min) | 40 | 50 | 80 | 155 | 175 | 250 |
| Milling depth (mm) | 0-70 | 0-70 | 0-120 | 0-150 | 0-190 | 0-190 |
| Milling width (mm) | 200 | 200 | 300 | 450 | 600 | 600 |
| Max. operating pressure (bar) | 310-380 | 310-380 | 310-380 | 310-380 | 310-380 | 310-380 |
Indicative figures from Kemroc. All models feature mechanical or hydraulic depth control. Torque output ranges from 800 Nm (EX 20) to 17,900 Nm (EX 70 HD).
Get in Touch
Contact our team for Patch Planers specifications, pricing and availability across Australia.
