Demolition & Recycling Attachments
Combi Shear
RDC Series, pulveriser and shear in one attachment, four models for 15 to 70 tonne excavators. Cycle times as fast as 1.2 seconds, jaw-tip cutting forces up to 140 tonnes for steel beams and 102 tonnes at position 1 for reinforced concrete.
- Models in range
- 4
- Carrier class
- 15 - 70 t
- Cycle time from
- 1.2 s
- Tip cutting force up to
- 140 t
RDC Series, multi-function demolition combi shear
One tool, two jobs, concrete crushing on the same cycle as steel cutting.
The Rotar RDC demolition combi shear merges pulveriser and shear into a single attachment. Crush concrete, cut steel beams, sever rebar and process mixed demolition waste, all from one head, on the same cycle. Four models cover excavators from 15 to 70 tonnes, with cycle times as fast as 1.2 seconds and tip cutting forces up to 140 t. The new stable pivot-point design guarantees long-term cutting performance without geometry creep. Distributed and supported in Australia by Monty Products.
Speed Valve, Cycle in 1.2s
The Rotar speed valve closes the jaws as fast as 1.2 seconds, then automatically switches from speed to power mode when the cycle demands more cutting force. Fast cycles, no compromise on through-cut.
Teeth + Cutting Knives
Replaceable cast teeth for concrete plus replaceable cutting knives for steel. Handle reinforced concrete and structural sections with the same head, on the same cycle.
Stable Pivot-Point Design
New stable pivot-point design and double-rowed slewing ring guarantee long-term cutting performance. No geometry creep across long service intervals.
Range Spectrum
Service weight (kg)
Where each model sits across the range. Lighter on the left, heavier on the right.
Where It Works
Common applications across Australian construction, demolition and civil sites.
Multi-material demolition
Concrete, steel and timber in the same structure handled by one tool, no attachment swap.
Steel beam cutting
Through-cut structural sections, columns and beams with the integrated cutting knives.
Rebar severing
Clean rebar cuts during concrete crushing, separate materials on the way down.
Mixed waste processing
Reduce mixed demolition streams to manageable, sortable pieces in one cycle.
360° demolition cycles
Rotating head positions the cut at any angle, no repositioning the carrier between bites.
Site cleanup
Process residual structural elements after primary demolition for easier truck-out.
The Range in Action
A featured shot plus supporting views, taken on Australian sites.

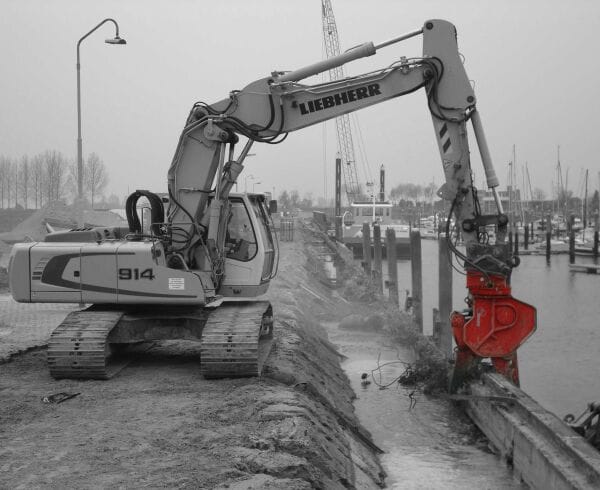

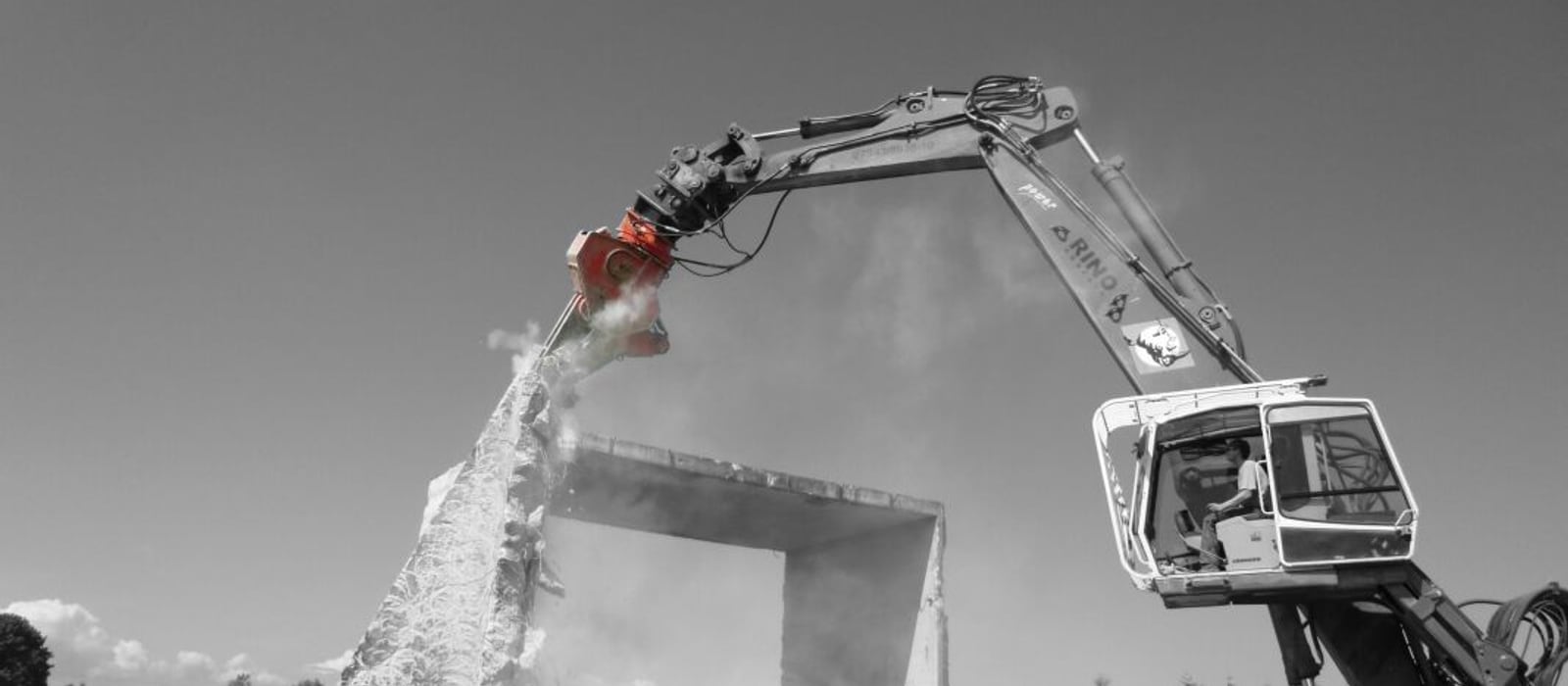

RDC SeriesCombi shear, crush and cut in one attachment

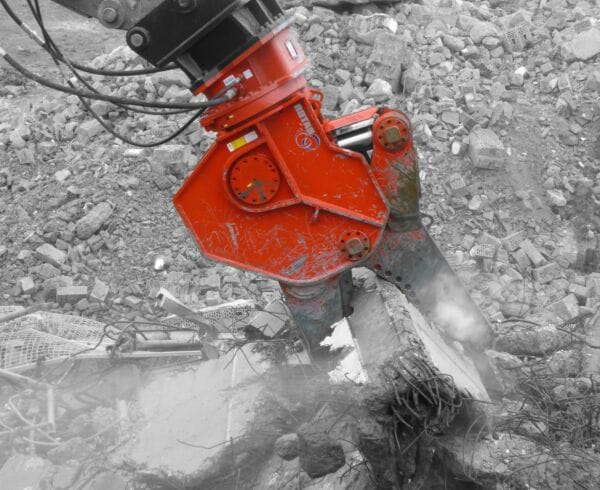

RDC SeriesSteel beam cutting with integrated knives
RDC SeriesCast teeth + cutting knives on rotating head

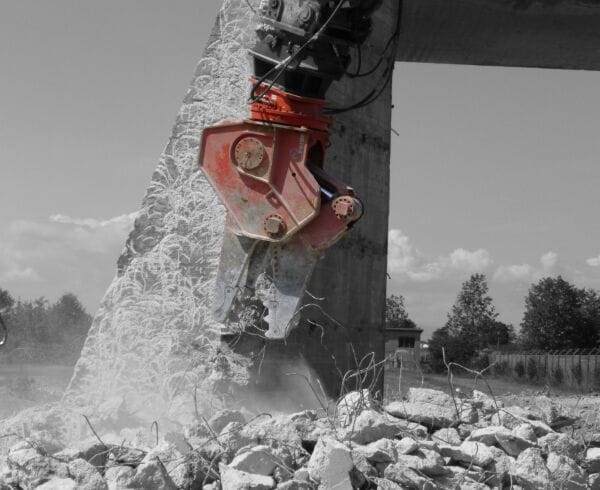

RDC SeriesMulti-material demolition without attachment swaps
Technical Specifications
Scroll horizontally on smaller screens. The measure column stays in view.
| Measure | RDC 20S | RDC 25S | RDC 32S | RDC 42S |
|---|---|---|---|---|
| Machine class (t) | 15-25 | 24-35 | 30-45 | 45-70 |
| Service weight (kg)* | 1,950 | 2,670 | 3,050 | 4,100 |
| Cycle open / close (s) | 1.2-1.9 | 2.2-2.4 | 2.5-2.8 | 2.6-2.8 |
| Closing force at position 1 (t) | 63 | 68 | 85 | 102 |
| Closing force at jaw tip (t) | 80 | 100 | 125 | 140 |
| Max. cylinder pressure (bar) | 350 | 350 | 350 | 350 |
| Cylinder oil flow (L/min) | 150-250 | 150-250 | 250-300 | 250-350 |
| Motor pressure (bar) | 170 | 170 | 170 | 170 |
| Motor oil flow (L/min) | 40-60 | 40-60 | 40-60 | 40-60 |
* Weight exclusive of adapter plate with bracket. Cycle times and cutting forces are indications only, external factors influence performance. Specs subject to change without notice.
