Attachment Milling Machines
Universal Cutters
ES Series, ten cutter heads from ES 20 (80 kg, 1-tonne carrier, 22 kW) up to ES 120 HD (1,115 kg, 40-tonne carrier, 120 kW). Surface profiling on horizontal, vertical and inclined faces in asphalt, concrete and rock.
- Models in range
- 10
- Carrier class
- 1 - 40 t
- Cutting depth up to
- 190 mm
- Power up to
- 120 kW
ES Series, universal cutter heads
Ten sizes, every angle, cutting depths to 190 mm, widths to 1 m, power to 120 kW.
Kemroc's ES range of universal cutter heads is built for precision profiling. Ten models cover excavators from 1 to 40 tonnes with rated power from 22 kW (ES 20) up to 120 kW (ES 120 HD). Cutting depths up to 190 mm and widths up to 1,000 mm. Different cutter drums adapt the head to asphalt, concrete or rock; optional stepless rotation modules deliver any cutting angle without repositioning the carrier. Distributed in Australia by Monty Products.
High-Powered Performance
Tool carrier equipped with a high-torque hydraulic motor, sustained cutting under load across the full operating range.
Precision and Versatility
Designed for the precise removal of material from horizontal and vertical surfaces, controlled depth, controlled geometry.
Optional Stepless Rotation
Compatible with rotation modules offering continuous, stepless rotation, any cutting angle without repositioning the carrier.
Range Spectrum
Service weight (kg)
Where each model sits across the range. Lighter on the left, heavier on the right.
Where It Works
Common applications across Australian construction, demolition and civil sites.
Surface profiling
Precise removal of material from horizontal and vertical surfaces, cut to specification rather than approximate to depth.
Surface cleaning
Strip damaged, contaminated or oxidised surfaces back to clean substrate, concrete, asphalt or rock face.
Wall and slab straightening
Bring concrete walls and slabs to true within tolerance, controlled material removal without breaking adjacent structures.
Rock face preparation
Profile rock cuts for retaining walls, embankments and bench faces, cleaner geometry than blasting.
Selective demolition
Target specific surfaces or layers for removal without affecting surrounding structures.
Trench wall straightening
Profile trench walls after rough excavation, clean vertical or angled walls ready for shoring or formwork.
The Range in Action
A featured shot plus supporting views, taken on Australian sites.

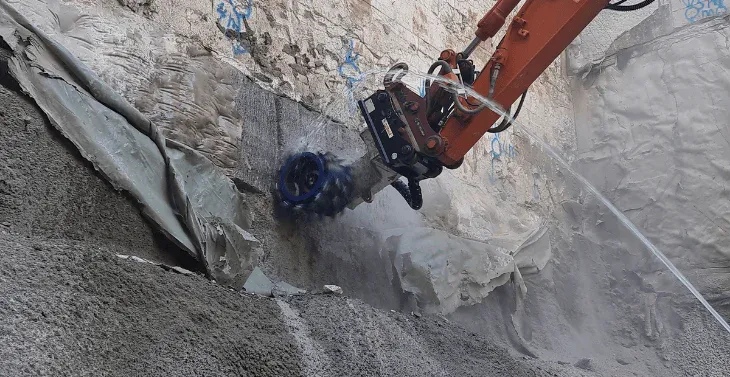

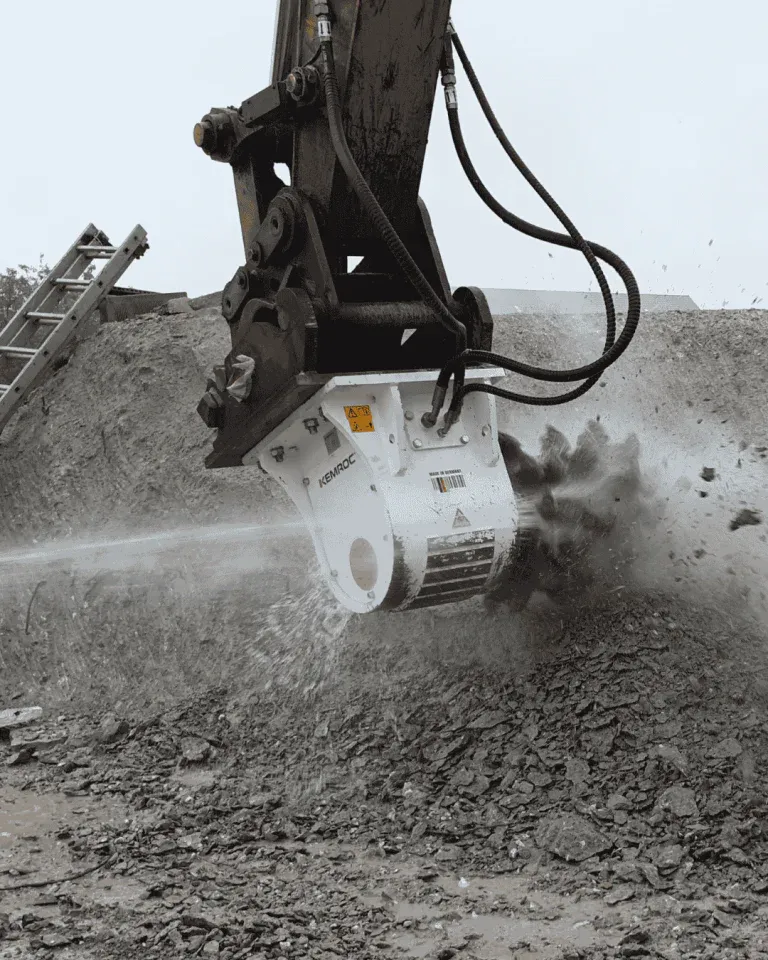

ES SeriesSurface profiling, horizontal and vertical work

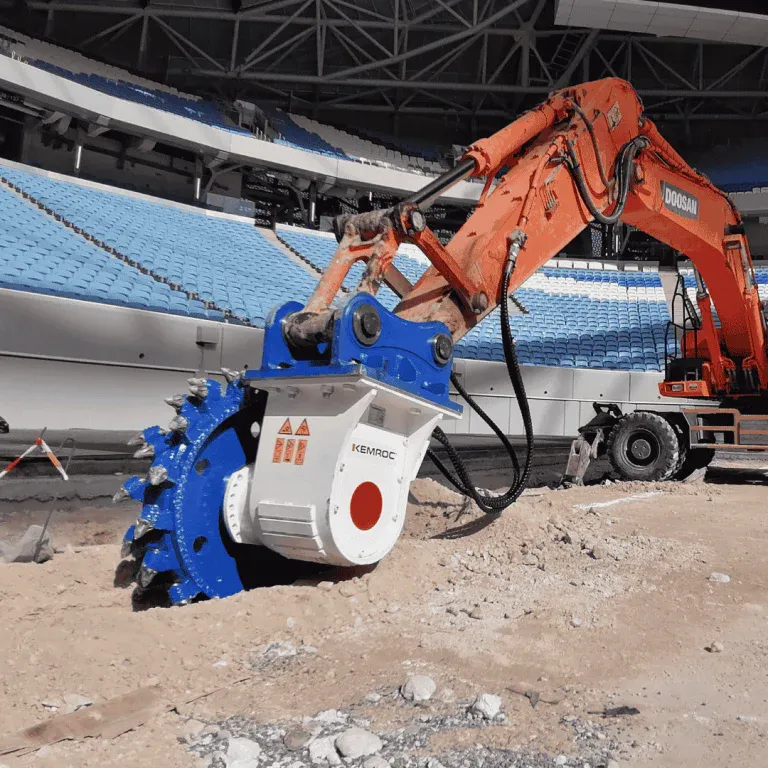

ES SeriesVertical wall cleaning and material removal

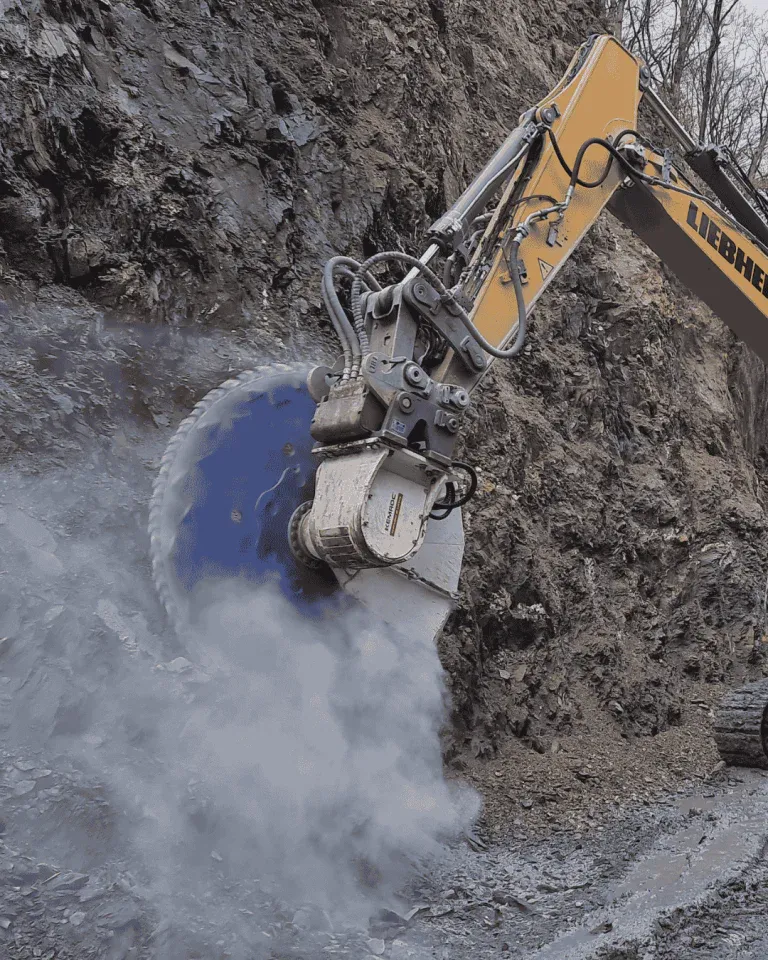

ES SeriesInclined cutting with optional rotation module
ES Series1 to 40 tonne carriers across the range
Technical Specifications
Scroll horizontally on smaller screens. The measure column stays in view.
| Measure | ES 20 | ES 30 HD | ES 45 HD | ES 60 HD | ES 80 HD | ES 110 HD | ES 120 HD |
|---|---|---|---|---|---|---|---|
| Carrier weight (t) | 1-3 | 5-10 | 10-16 | 15-23 | 15-25 | 25-40 | 25-40 |
| Drive weight (kg) | 80 | 125 | 270 | 280 | 580 | 1,115 | 1,115 |
| Oil flow (L/min) | 20-70 | 60-110 | 100-180 | 150-210 | 150-210 | 210-350 | 230-350 |
| Cutting depth (mm) | 85 | 110 | 110 | 190 | 150 | 105-150 | 105-150 |
| Cutting width (mm) | 200 | 300 | 450 | 600 | 600-800 | 600-1,000 | 600-1,000 |
| Rated power (kW) | 22 | 30 | 65 | 80 | 80 | 110 | 120 |
Selection of seven from the full range of ten ES models, full per-model data available on request. Drive weight excludes the cutter drum.
