Sorting & Demolition Grab
RG Series, ten models from RG 5-N (210 kg, 2 t carrier) up to RG 60-N (3,950 kg, 70 t carrier). Shell volumes 100 to 1,500 L, closing forces 12 to 115 kN. HARDOX® shells with rotatable cutting edges and load-control valves on every cylinder.
- Models in range
- 10
- Carrier class
- 2 - 70 t
- Shell volume up to
- 1,500 L
- Closing force up to
- 115 kN
RG Series, sorting & demolition grab
Ten sizes, every carrier, from 2-tonne minis to 70-tonne giants, on demolition and recycling sites.
The Rotar RG Series is the most versatile grab line in the Rotar catalogue, ten models cover the full excavator spectrum from 2 to 70 tonnes. Standard perforated shells with optional closed or rib-shells means there's a configuration for any application: demolition, sorting, scrap, recycling. HARDOX® shells feature rotatable, replaceable cutting edges, mounted in long-bearing pivots with hardened oversized pins. Every cylinder includes a load-control valve protecting against unintended shell opening. Distributed in Australia by Monty Products.
HARDOX® Shells, Rotatable Edges
Wear-resistant shells in HARDOX® steel with easily replaceable, rotatable cutting edges. Mounted in long-bearing pivots within a double-walled body with hardened oversized pins, built for long durability under abrasive loads.
Heavy-Duty Slewing Ring
Strong rotating upper head with double-rowed slewing ring and high-torque hydraulic motors. Handles heavy loading from any position with full lift force regardless of orientation.
Load-Control on Every Cylinder
Every RG cylinder has a load-control valve protecting against unintended shell opening, plus extra-long stroke ensuring full closure even when the cutting edges have worn.
Range Spectrum
Service weight (kg)
Where each model sits across the range. Lighter on the left, heavier on the right.
Where It Works
Common applications across Australian construction, demolition and civil sites.
Demolition rubble
Lift and load broken concrete, brick and mixed rubble straight into trucks or sorting piles.
Material sorting
Separate steel, timber, brick and concrete on the demolition site for clean recycling streams.
Steel & rebar handling
Grip exposed reinforcement and structural steel for staging or load-out.
Construction site loading
General handling on civil and construction projects, replaces buckets and clamps for irregular loads.
Recycling yards
Sort, feed and load mixed waste streams across recycling and waste-handling operations.
Truck loading
Load and unload skip bins, hook-bins and tippers, full closure even with worn shell edges.
The Range in Action
A featured shot plus supporting views, taken on Australian sites.

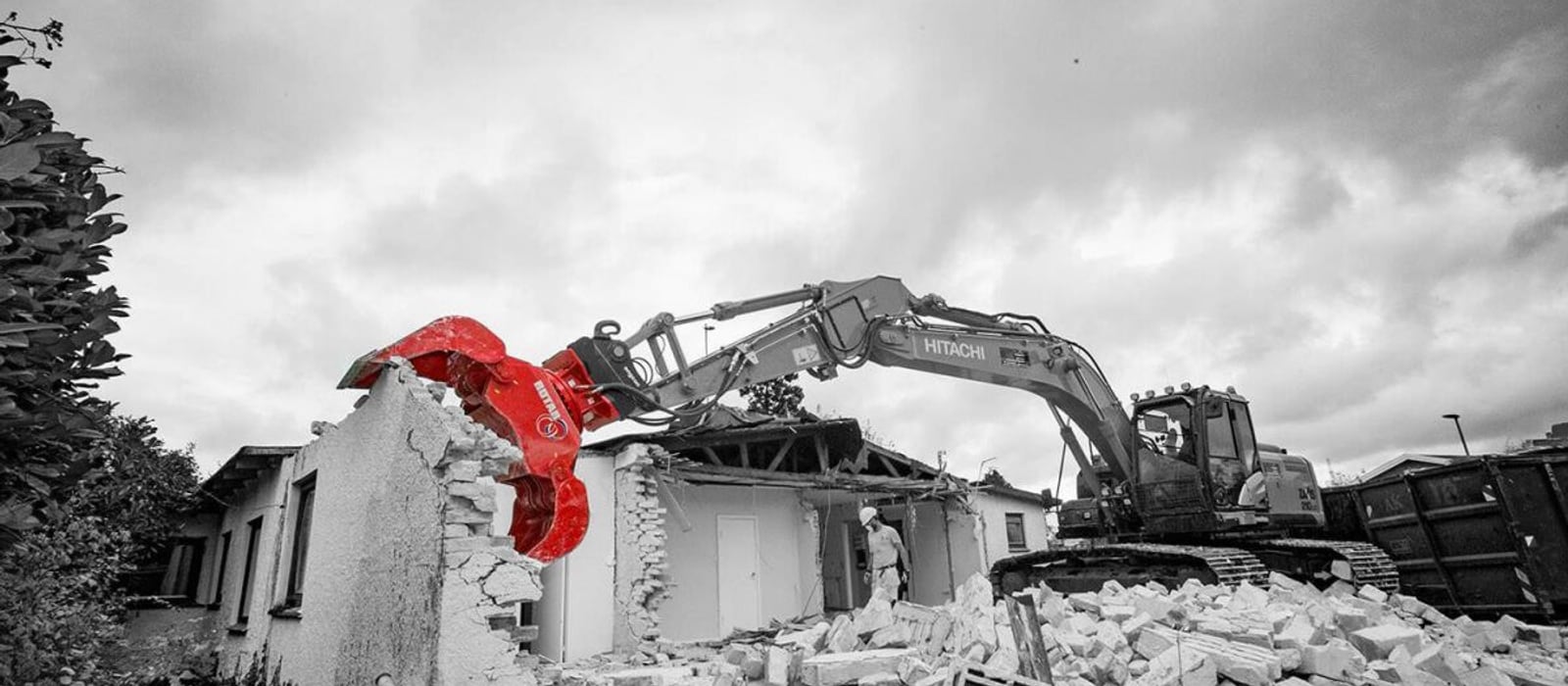

RG SeriesSorting and loading mixed demolition material

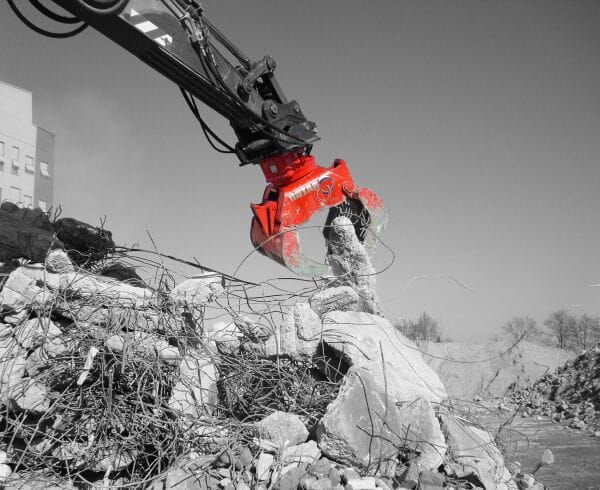

RG SeriesHARDOX® shells with rotatable cutting edges

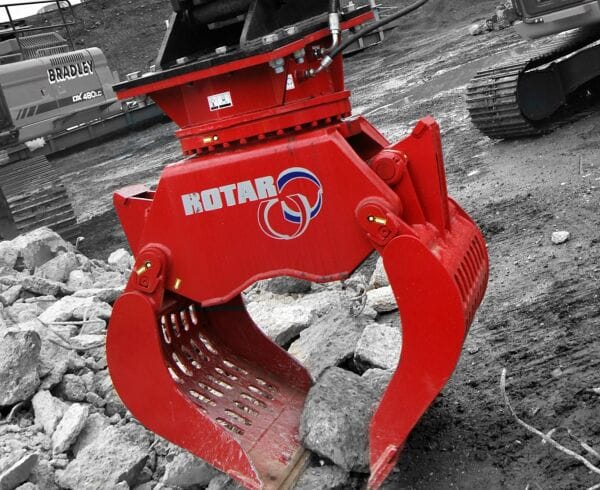

RG SeriesSteel and rebar handling on demolition sites

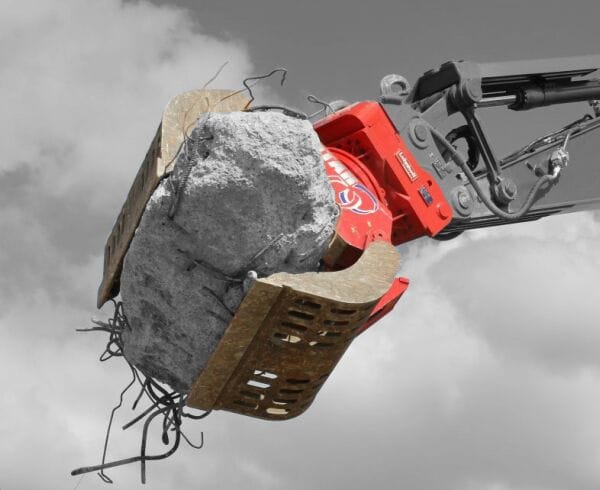

RG SeriesBulk rubble loading with 360° rotation
Technical Specifications
Scroll horizontally on smaller screens. The measure column stays in view.
| Measure | RG 5-N | RG 9-N | RG 12-N | RG 15-N | RG 22-N | RG 30-N | RG 40-N | RG 50-N | RG 55-N | RG 60-N |
|---|---|---|---|---|---|---|---|---|---|---|
| Machine class (t) | 2-5 | 5-9 | 10-15 | 14-18 | 16-22 | 20-30 | 25-40 | 35-50 | 45-55 | 50-70 |
| Service weight (kg)* | 210 | 435 | 900 | 1,015 | 1,350 | 1,600 | 2,200 | 2,350 | 3,300 | 3,950 |
| Shell volume (L) | 100 | 140 | 325 | 400 | 530 | 640 | 900 | 1,100 | 1,300 | 1,500 |
| Closing force at 320 bar (kN) | 12 | 26 | 41 | 41 | 53 | 61 | 70 | 80 | 100 | 115 |
| Max. cylinder pressure (bar) | 320 | 320 | 320 | 320 | 350 | 350 | 350 | 350 | 380 | 350 |
| Cylinder oil flow (L/min) | 35 | 50 | 80 | 80 | 100 | 100 | 120 | 120 | 150-200 | 150-200 |
| Motor oil flow (L/min) | 20 | 20 | 40 | 40 | 40 | 40 | 40 | 40 | 40-60 | 40-60 |
* Weight exclusive of adapter plate with bracket. Closing force measured at 320 bar. Specs subject to change without notice.
