Hydraulic Breakers
XL Breakers
Five models from XL1000 to XL2700, engineered for 11 to 38 tonne excavators. Trenching, earthmoving, demolition and quarrying, the workhorse breaker class for the busiest part of the Australian fleet.
- Models in range
- 5
- Carrier class
- 11 - 38 t
- Service weight from
- 843 kg
- Oil flow from
- 70 L/min
XL-class hydraulic breakers
Five carrier-matched models for the 11 to 38 tonne workhorse class, the breakers most operators run, most days.
Montabert's XL range sits between the medium and heavy classes, covering excavators from 11 to 38 tonnes. The line carries Montabert's signature long-life seal system. High-quality seals maintain stable nitrogen pressure for sustained impact energy across long service intervals, together with reinforced housings and shock-absorbing suspension. Five sizes give operators precise hydraulic matching across trenching, demolition, quarrying and earthmoving. Distributed and supported in Australia by Monty Products.
Five Carrier-Matched Models
XL1000, XL1300, XL1700, XL1900 and XL2700 each target a specific carrier band, match impact energy and oil flow to the excavator instead of compromising.
Long-Life Seal System
High-quality seals maintain stable nitrogen pressure across long intervals, delivering sustained impact energy and reduced unscheduled downtime.
Maintenance-Friendly
Reinforced housings, shock-absorbing suspension and high back-pressure tolerance. Straightforward installation and simple servicing across the range.
Range Spectrum
Service weight (kg)
Where each model sits across the range. Lighter on the left, heavier on the right.
Where It Works
Common applications across Australian construction, demolition and civil sites.
Trenching & earthmoving
Pipe and cable trenching through reinforced surfaces, bulk excavation in mixed ground.
Demolition
Mid- to large-scale structural demolition, slab removal and reinforced concrete cutdown.
Quarrying
Quarry face breaking, oversize secondary reduction and stockpile management.
Concrete & foundations
Reinforced concrete, heavy footings and pile-cap breakouts on commercial and civil sites.
Civil & infrastructure
Road and rail formation, bridge approaches, kerb and pavement demolition.
Bulk excavation
Mass earthworks where mechanical breaking replaces blasting on noise- and vibration-sensitive sites.
The Range in Action
A featured shot plus supporting views, taken on Australian sites.

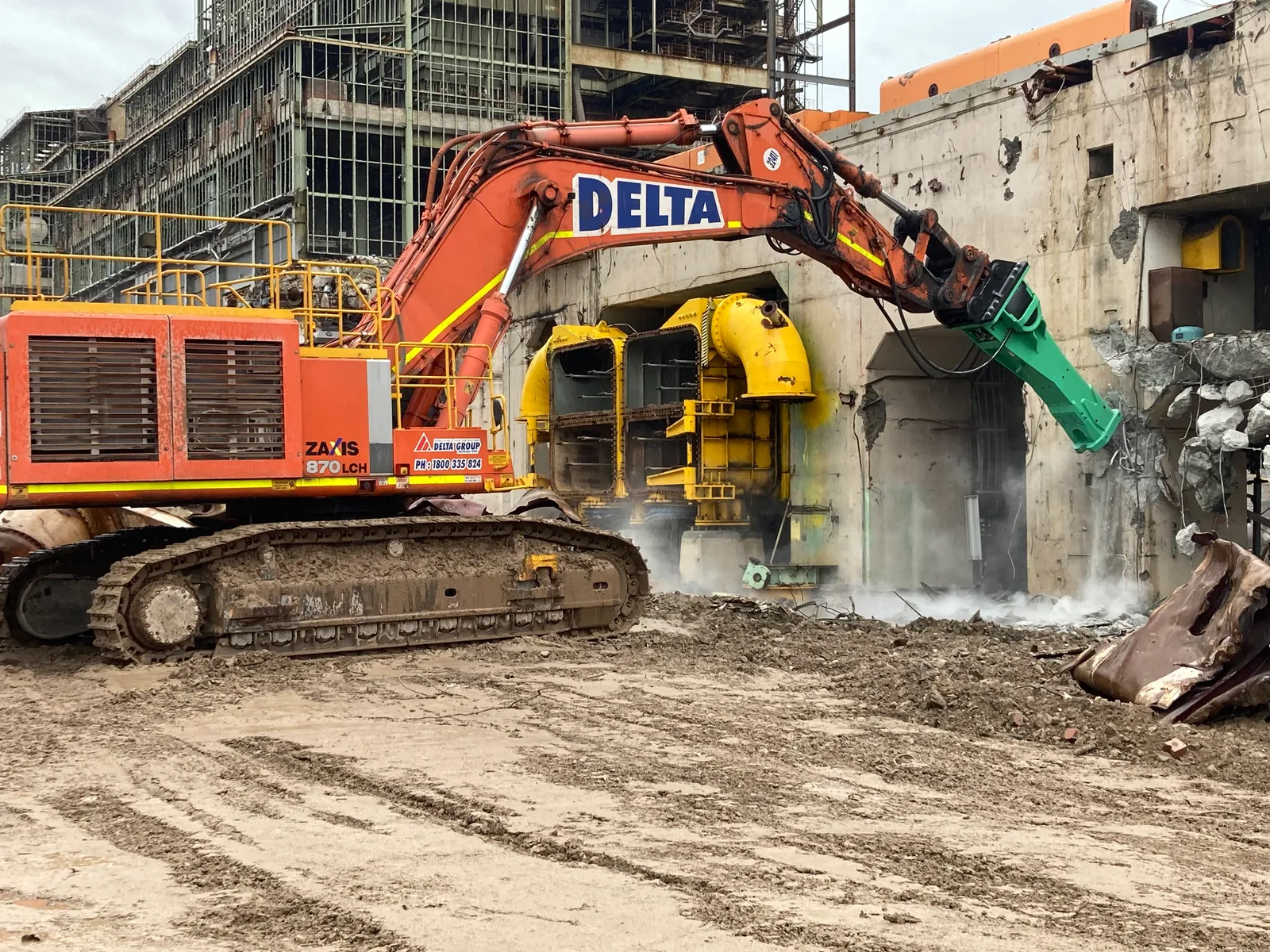

XL SeriesMajor structural demolition on a Hitachi ZX870 carrier

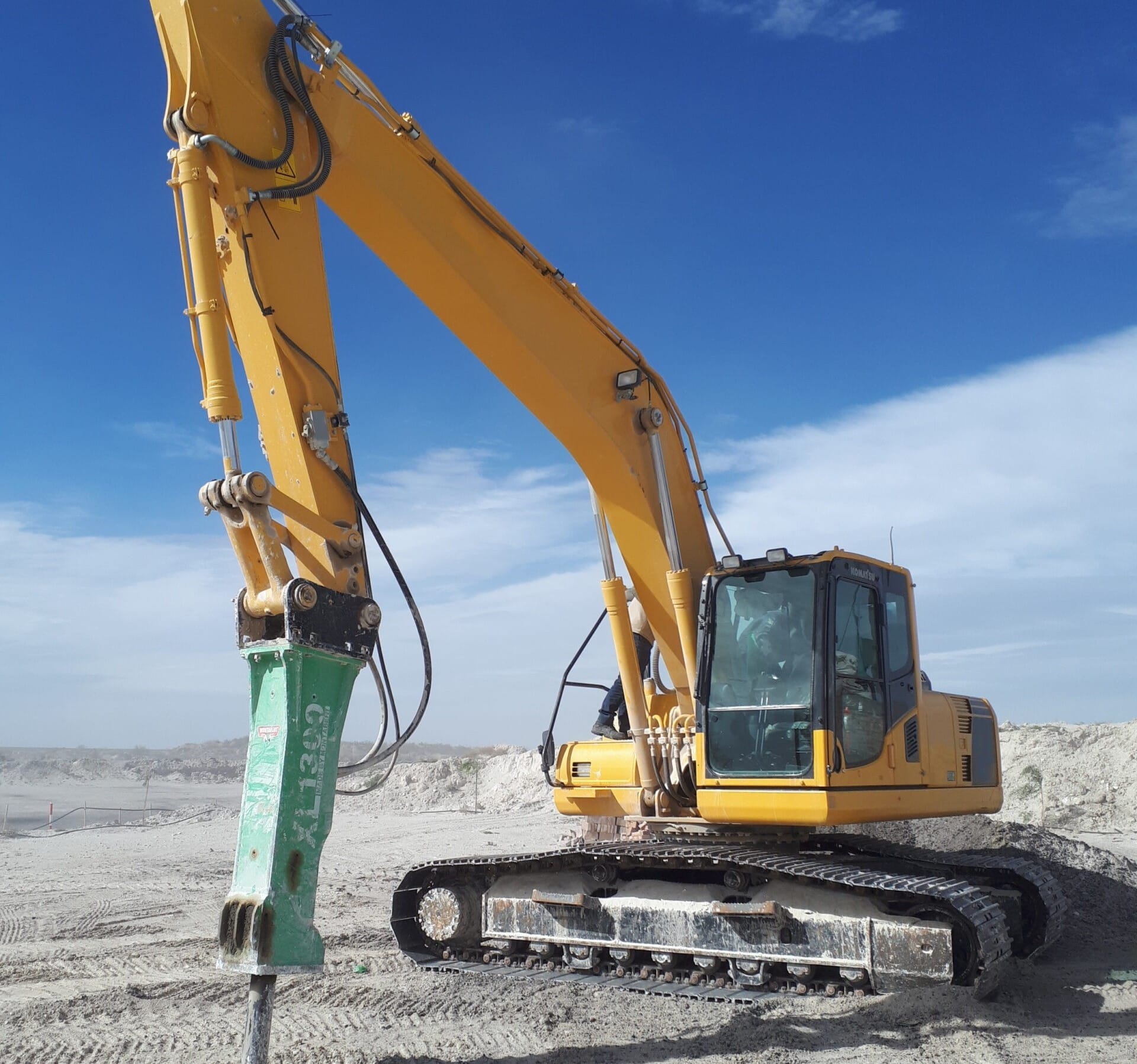

XL1300Mid-XL workhorse on a 15 to 22 tonne carrier

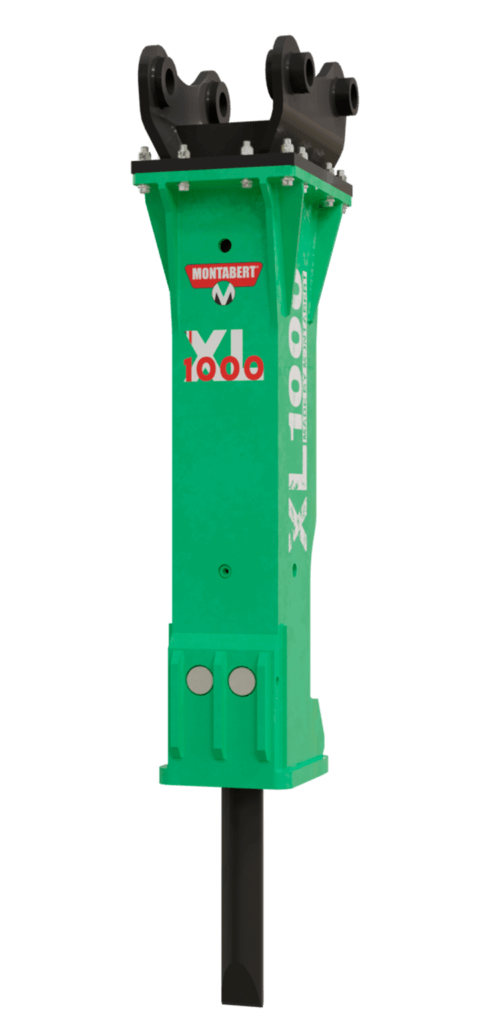

XL1000Entry to the XL range. 11 to 17 tonne carriers

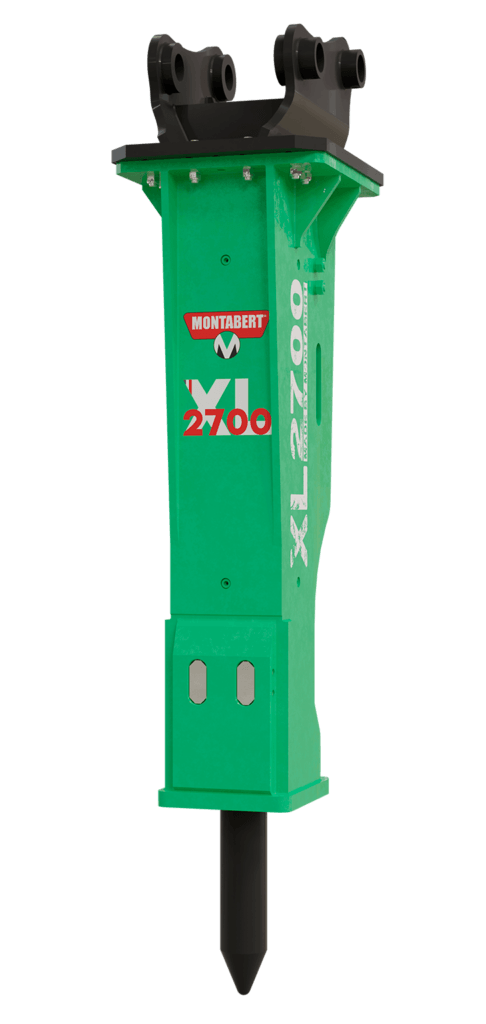

XL2700Top of the XL range. 28 to 38 tonne carriers
Technical Specifications
Scroll horizontally on smaller screens. The measure column stays in view.
| Measure | XL1000 | XL1300 | XL1700 | XL1900 | XL2700 |
|---|---|---|---|---|---|
| Carrier weight (t) | 11-17 | 15-22 | 18-28 | 21-31 | 28-38 |
| Oil flow (L/min) | 70-120 | 90-140 | 100-150 | 120-180 | 150-240 |
| Max. working pressure (bar) | 170 | 170 | 150 | 180 | 180 |
| Service weight (kg)* | 843 | 1,080 | 1,436 | 1,745 | 2,310 |
| Weight with adapter (kg) | 1,035 | 1,298 | 1,778 | 2,091 | 2,780 |
| Input power (kW) | 34 | 39.6 | 45 | 54 | 72 |
| Striking frequency (BPM) | 400-750 | 355-600 | 340-560 | 360-630 | 335-630 |
| Noise level (dBA) | 91 | 96 | 89 | 101 | 99 |
* Without adapter plate. Indicative figures from Montabert, confirm carrier matching, working pressure and tool selection with Monty Products for each application.
